High Bay UFO LED Light - 150 Watt - 400W Equivalent - 5700K - 20098 Lumens - IP65 - Factory Industrial Warehouse Light Fixture - 50,000 Life Hours - 5 Years Warranty
Introducing our best selling product in the warehouse area and high ceiling indoor lighting category. LED 150W UFO High Bay light is an ideal lighting solution to indoor ceiling with height up to 15ft. To 25ft. and with a lumen output up to 20,098 lumens, this Led Dimmable High Bay light can get you more brightness than traditional 400W MH light while it would also save you 350W of energy on each fixture. Its premium grade lens is designed to achieve a beam angle of 120 degrees. This product is dimmable and can be easily hook mounted on any ceiling surface. This High Bay LED Light for warehouses also has an IP65 rating which means that the fixture is completely dust-free and water-resistant to a great extent.
- A replacement to 400W MH fixture, the LED 150W High Bay fixture helps you save up to 75% of energy per fixture.
- Available Color Temperature is 5700K which makes it an ideal color temperature for indoor space.
- With a lumen output of 20,098 Lumens and Lumen Efficacy of 130 Lumens/Watt, BUILDMyplace' UFO High Bay will perform better than any traditional metal halide lights.
- With a lifespan of 50,000 hours, this premium LED light will have your back for years.
- This fixture can easily be mounted with the various mounting option of the unit, reducing installation time to one-fifth of what traditional fixtures consume.
- It gives the freedom to control the brightness with dimming feature ranging from 1V to 10V
- Voltage Input: 120 - 277 Volts
- Beam Angle: 120 Degree
- IP65 rated: Moisture and dust resistance
- cULus, DLC & FCC approved
- IP65: Moisture and dust resistance
- 5 years of Manufacturer's Warranty and 30-day return policy will place you on the safe side.
It's an easy installation for the recessed lighting provided through UFO high bay. The hanging ring that comes with our UFO high bay must be inserted into the hole of the lamp and must be tightened through a bolt on the hanging ring itself so that UFO lamp is now firmly fixed. This must be now mounted on the ceiling via a hook. For details, you must check the complete manufacturer's instructions that come along with the product.
For hook mounting of the UFO high bay, you must have a hook that is heavier than the lamp. Make sure the weight of the hook is 3-4 times heavier than the UFO lamp.
Thermal Heat Dissipation
The UFO high bay lighting fixtures come with a big heat sink manufactured out of aluminium for excellent heat dissipation.
Small Electron Great Power
The electric current when applied to the leads, the electron gets released and recombine with the electron holes inside the LED device to release energy in the form of photons. The color of the light hence is determind by the photonic energy. So, it's a small electron but great power.
Premium LED Chips
In order to maintain highest quality of the product, we use premium LED chips. The chips are packaged inside the product with high precision and accuracy to render maximum operational efficiency to the product.
IP 65 Water Proof
This rating means our UFO high bay is protected against dust-tight and water ingress coming through a nozzle made possible through a driver inside the product.
Ultra Wide Angle Lens
This product comes with a beam angle that is too wide and not less than 120 degree which is utilized for illumination of wide areas and huge spaces.
The housing of our UFO high bay is designed in rugged die-cast aluminium to impart the fixture the necessary durability for withstanding any external tampering.
Low Cost Maintenance
The lifespan being 50,000 hours and with very less lumen depreciation till the end of its lifespan, very low maintenance is needed and hence the costs are also low.
The UFO high bay as a dimmable product can be dimmed from 10 volts to 1 volts, 1V being the minimum light level that can be achieved and 10V being the highest level of dimming allowed by the dimmer. At 10 volts, the controlled lighting is at 100% of its potential output. Make sure you have a compatible dimmer for our UFO high bay dimmable light.
The more than standard CRI for UFO high bay helps viewing of objects and surfaces with greater clarity and in their true colors in comparison to what they would look without any artifical lighting.
Motion Sensor (Optional)
The motion sensor comes as an accessory and you can choose to have this with our UFO high bay as it helps in alerting you to an intruder especially when you are away.
The UFO high bay being DLC approved comes within the scope of rebate-eligibility criteria and hence you can be eligible for rebate if you decide to have one of our leading products under the commercial segment -- UFO high bay.
This product is compatible with the following dimmers. These dimmers work perfectly with our lights.
**For any other Dimmer please contact our customer support or check with your electrician.
|Beam Angle:||120 Degree Beam Angle|
|Certifications:||UL, DLC Premium|
|DLC Model no.:||WEN-HB07-150WSACGD1-BH57|
|Lens Type:||Clear Glass|
|MPN (Part No.):||UF008|
|Color Temperature (Kelvin):||5700K|
|DLC Listed:||DLC Premium|
|Height:||7.28 in (including hook)|
|IP Rating:||IP65 Rated|
|Life Hours:||50,000 Hours|
|Metal Halide Equal:||400 Watt Replacement|
|Operating Temprature:||-40 F TO +122 F|
|Voltage:||100V - 277 Volt|

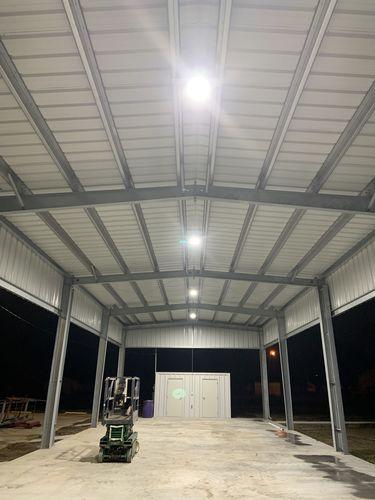

Bought this one for my two car garage and the larger ones for my large garage. It like having daylight on in the garage. They are amazing!! Looking to upgrade outside spot lights next.
Lights are small but very sturdy. They are very bright and I was able to replace 2 halogen fixtures with one of these LEDS. This was for a freezer application and so far they seem to work very well.
Questions & AnswersAsk a Question
Which color wire is the neutral for this fixture? It has green with yellow stripe, brown, and blue wires.
Green With yellow Stripe is ground ; Brown is Hot ; Blue is Neutral.
what is the total amp?
0.54 - 1.36 Amp.
so 110 is what you run?
These will run from 100-277v.
Are these lights dimmable using a DMX controller?
yes, these are dimmable.
How many would I need for 48x30 pole barn 12ft ceiling ?
its very difficult for us to tell you that without doing the photometrics however you can space them apart about 10ft - 16 ft and go from there.
Are these dimmable? Thx
yes , however you need to buy the dimmer seperately .
what is the suggested mounting height?
It depends on how you want to spread light, we recommend about 30ft but have customers who have them higher and lower.
For the dimmer, is it a rating of one to ten volt on the switch or is that the dimming capabilities? Also, what is the recommended dimmer for these lights?
It can run with 1-10v on a dimmer that carries that. We don't recommend any certain brand, except to make sure it's LED compatible.
Are there any type of diffuser you can put on these? Because they are literally blinding if you look at them!
We do not carry any and I don't know that they're offered for these in these specs.
What is the operating temperature range?
Operating Temperature: -4ºF to 113ºF
Where are these manufactured?
We have 480 v delta 3 phase lighting system. Can this light be used, 1 leg in the system is 240. How would it be wired up. The high leg is more than 277 v. We tried some corn lights and they only flash wired with the 240 leg. Thanks
This light will not work with 3 phase lighting set-up.
good morning i need some light for a low ceiling warehouse 12 to 15'. will these work?? also i am going to need around 35 of these to replace all the existing lights. can we get a case price?? do these qualify for the CA PG&E rebates?? thanks ty california welding supply
These will definitely work. We have factory direct pricing but we have an offer running on the website until 25th March. If you order before that you can get $60 off above $2000 order. Please use code WK2000 to avail the offer.
How long is the factory installed cord?
Our latest one was about 16inches.
Are these USA
We are a USA based company.
Are these high bay lights 120 volt only, or can they be wired 240 volt
We only have 120V right now, we do have high voltage ones in pole lights.
Is the bulb included with this unit?
The light consists of tiny LEDS inside, no need for a traditional bulb. The light does come with everything needed for installation.
What is the amperage?
It's 1.7A, 50/60Hz.
What is the physical size of the fixture?
These are 16 x 16 x 8 x 11lb
how long are the connecting cables and why are there two on the hi-bay led 150 watt light,also where are they manufactured and where is the warranty depot?are they suitable for a direct connection to 277 volts? thanks brian
Each is about 10 inches long. One is for the dimmer. They're manufactured in China, we are the manufacturer. The warranty is for years, and yes they are. They're rated for 100-277V.
Replacing 175 MH, wired 220, cold Wisconsin cattle barn and machine shed also, but machine shed wired 120v. Recommend or probably not the best choice?
These are rated for 100-277V so I don't see why not!
can you wire them to 110 plug so you can use them in various places without direct wiring to house
Yes you can!
Do these turn on instantly?
Yes they do.
Can this light be wired 240V so no neutral is used
The light runs anywhere from 100-277V!
Are they hardwired or plug in
They get hard-wired into your power supply
What is the diameter of these lights?
It is 12.6in in diameter. More info can be found near thr bottom of the page of the light!
Can this light be put on the outdoors? Is this light weatherproof?
no, we recommend it only for indoor use. It is IP65 rated though, which is protected against water and is dust-tight.
does it come with the mounting hook?
Yes it does!
new garage with vaulted ceils, 28x34 ft. what is your recommendation per number of fixtures 2 or 3?
We would recommend 2 of these UFOs.
How many do you think I need for a 70x104 warehouse with 16’ tall ceilings?
You could get away with about 12 of these!
I have a new pole barn 48x80x16 how many lights do I need and where do I put them
You would be fine with anywhere from 10-12 lights and they could be spaced out about 20ft apart or so.
50 - 30 - 14 in close shop
You could get away with about 4 lights! Or up to 6 if you'd like to space them closer together.
How many lights for a 30' x 40' x 14' high pole barn?
You could get away ith about 4 lights! 6 if you wanted to space them out a little closer together.
My building is 24x40x16. How many do i need?
You could get away with 2 fixtures, or for sure 3, but we'd recommend the 200W version!
We have a 36x48 pole barn with 16' ceilings. How many lights do you recommend?
You could do as little as 4 or as many as 6, depending on how far you'd like them space out!
I have a 48x60x12 metal shop. How many lights would I need and what is your recommendation on spacing.
You could get away with as little as 6 lights or as many as 10. You could space them out 20ft or 40ft apart from each other.
Where are these mae?
The products are made in China
Do they come with mounting hook? And I'm thinking 12 in a 40x52x16 shop?
Yes! And you could use even less if you wanted, like 6-8.
What dimmers would be suitable for these ?
They work with any LED compatible 0-10V dimmer.
how many amps do these lights draw
They draw 1.65A.
I have a warehouse bay that I want to illuminate. It is roughly 150’ x 36’ with 40’ ceilings. How many of these lights would I need?
You could use about 10-12 of these! For 40W ceilings, we'd recommend the 140W version, though.
what is the diameter of these lights?
The entire diamater is 12in but the diameter of the inner glass pieces is almost 8.5in.
