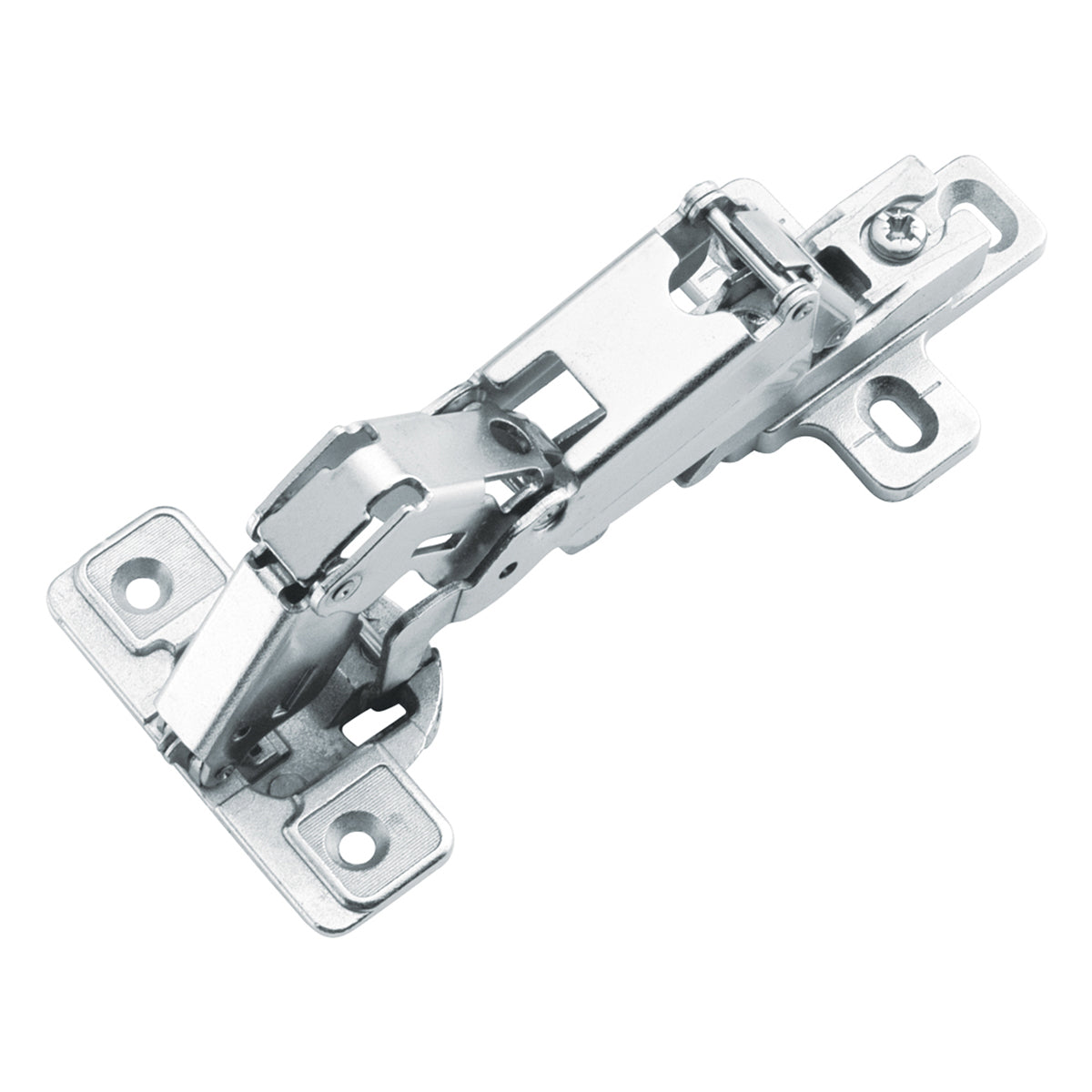

Hinge Concealed Full Overlay Frameless 165 Degree Lasy Susan Self-Close in Polished Nickel - Hickory Hardware


Regular price $25.03
Sale price $25.03 Regular price $31.29
Save 20%
  • Limited Lifetime Warranty
  • Estimated Delivery:Mar 05 - Mar 09,the delivery time for cabinets may vary.

  • Free Shipping on select orders & Returns on all orders.

Concealed Hinges Collection Hinge Concealed Full Overlay Frameless 165 Degree Lasy Susan Self-Close - Hickory Hardware

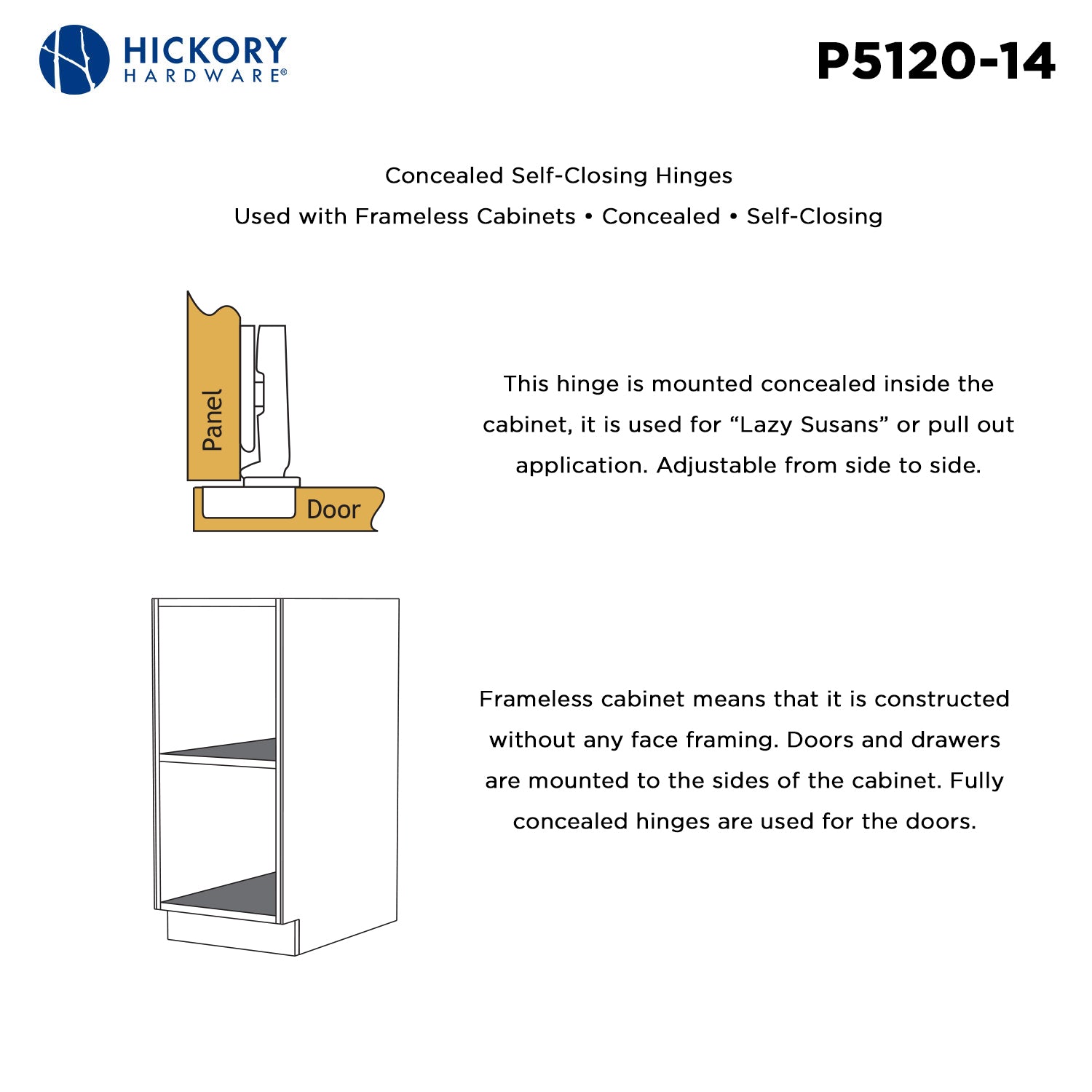

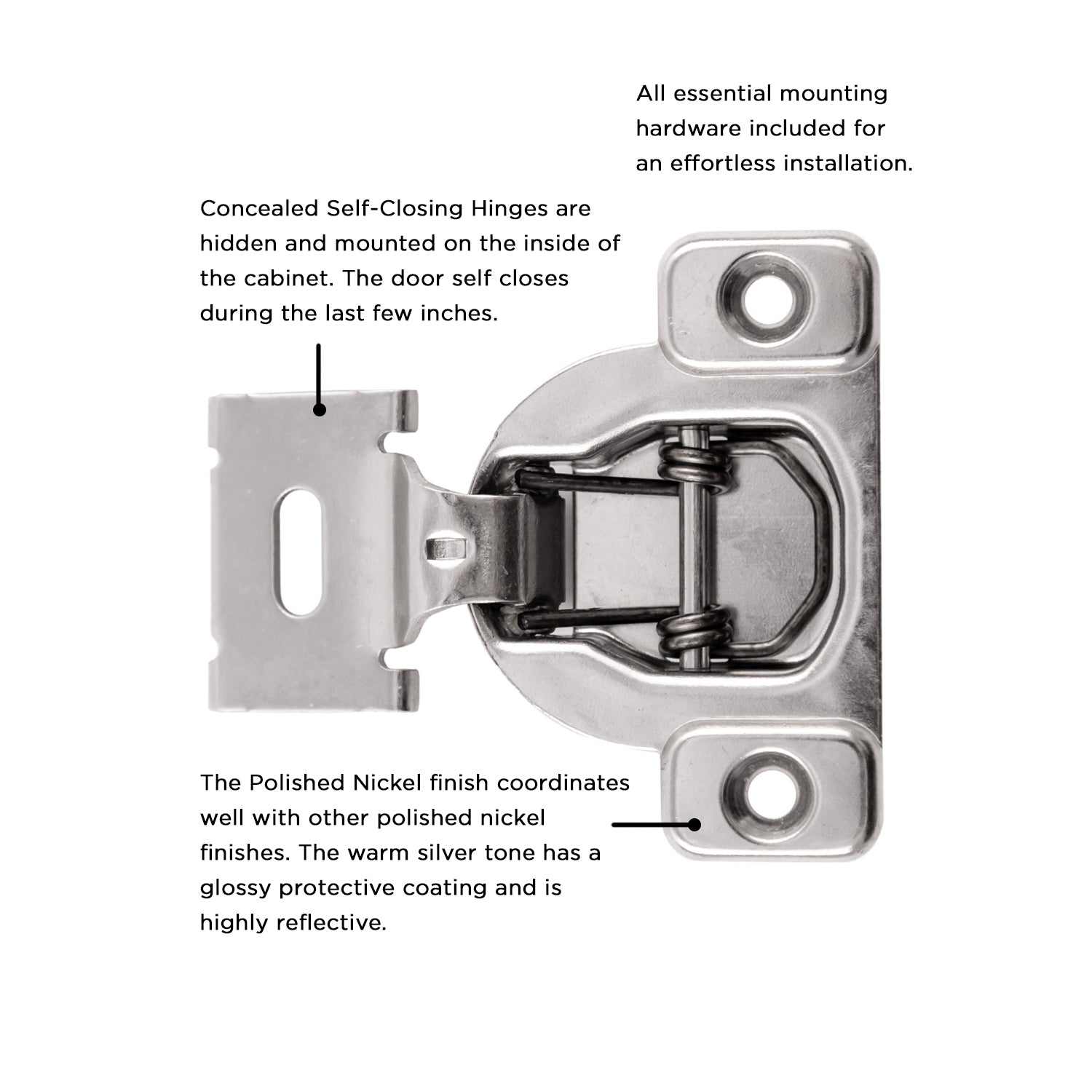

This European style concealed hinge is necessary for your Lazy Susan or pull out application project - with a wide opening angle, the hinge swings the door well clear of the cabinet opening and provides plenty of clearance for pull-out shelves and reach-in access to the cabinet. Features baseplate with slide-on hinge mounting for easy door removal and installation, and micro side to side adjustment. This self-closing hinge pulls the door closed for the last few inches of travel and keeps it shut. Mounting hardware and instructions included for DIY friendly installation. Note while this hinge would provide swing out door attachment to Lazy Susan cabinet, other hinges may be necessary for connecting extended pie corner doors - see our model HH75110-14 hinge for pie corner application. See our model HH075224-14 for 165 degree hinge with extra functionality.

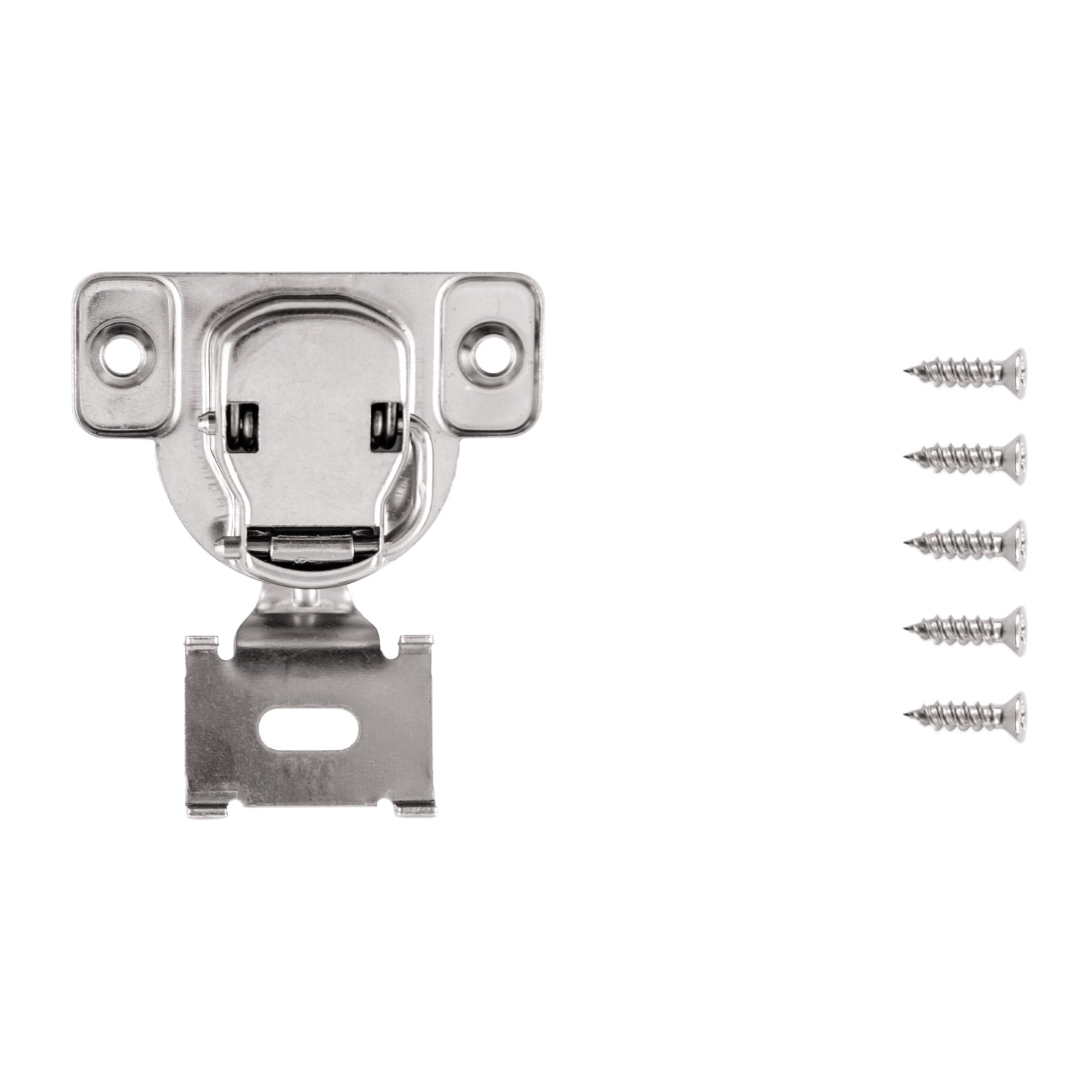

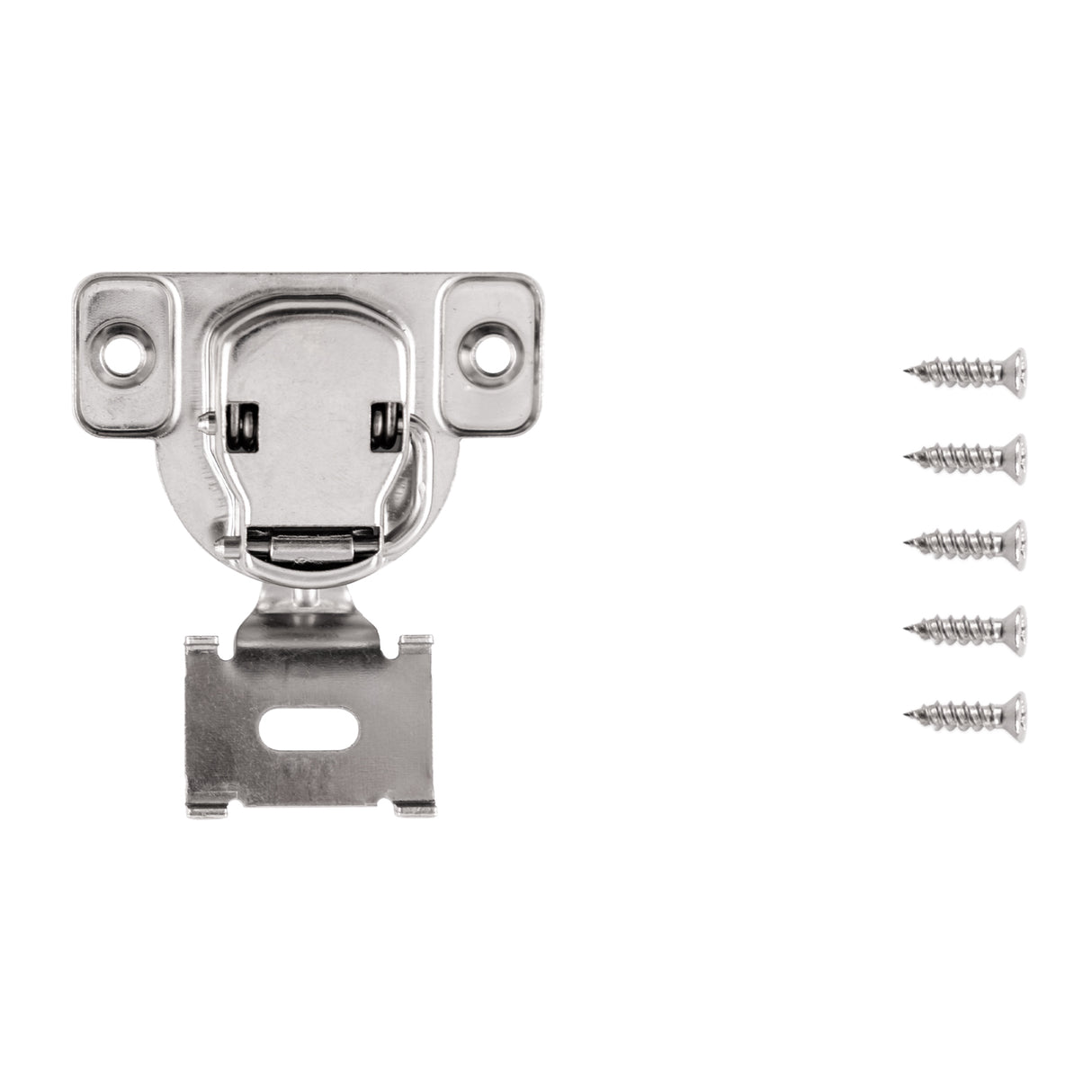

  • All essential mounting hardware included for an effortless installation.
  • Full overlay
  • Frameless
  • Micro side to side adjustment
  • 165 Degree Opening
  • Since 1893, Hickory Hardware® has built a reputation as the world's premier producer and preferred supplier of quality decorative cabinet Hardware.

Additional Hickory Hardware Links

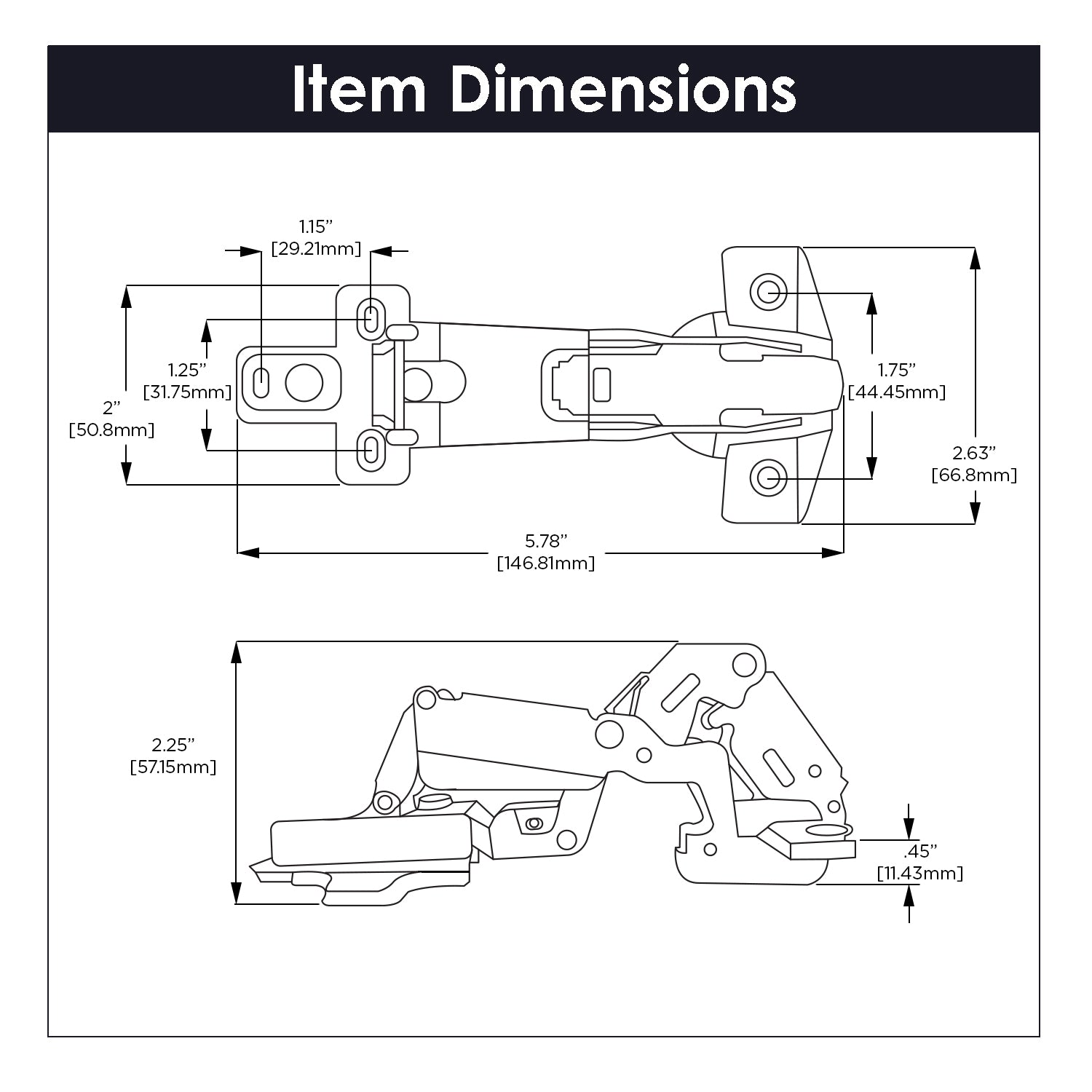

Product Specifications

Collection: Concealed Hinges Collection
Included In Package: Hinge, Mounting Hardware, Instructions
Material: Steel
MPN (Part No.): P5120-14
Projection (IN): 1-13/16 Inch
Weight (LB): 0.4
Country of Origin: China
Length (IN): 5-1/2 Inch
MPN: P5120-14
Pack: 1-Pack
Warranty: Limited Lifetime
Width (IN): 2-7/16 Inch
