LEDMyplace  |  SKU: WEN-ZH03QA5-Q.BAG

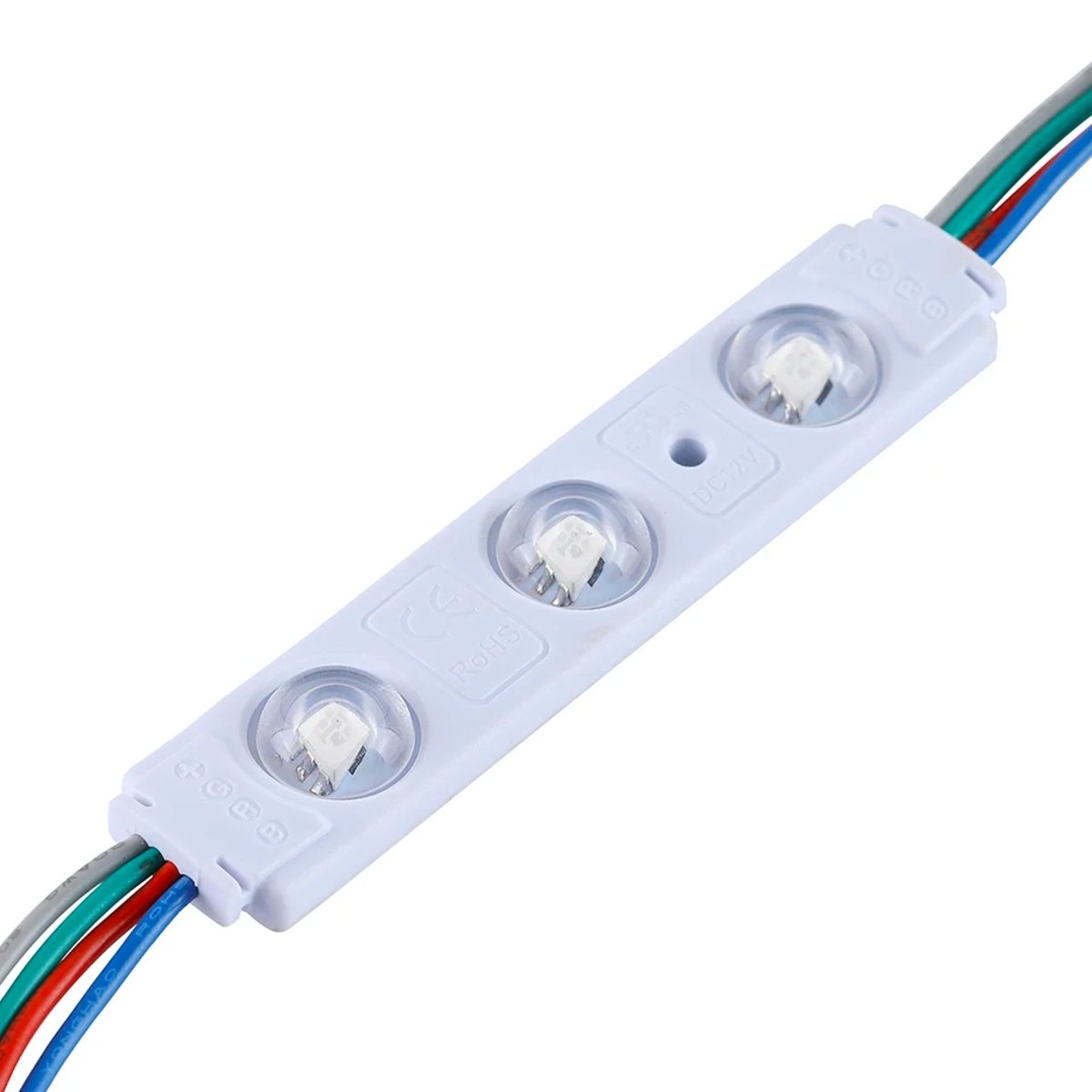

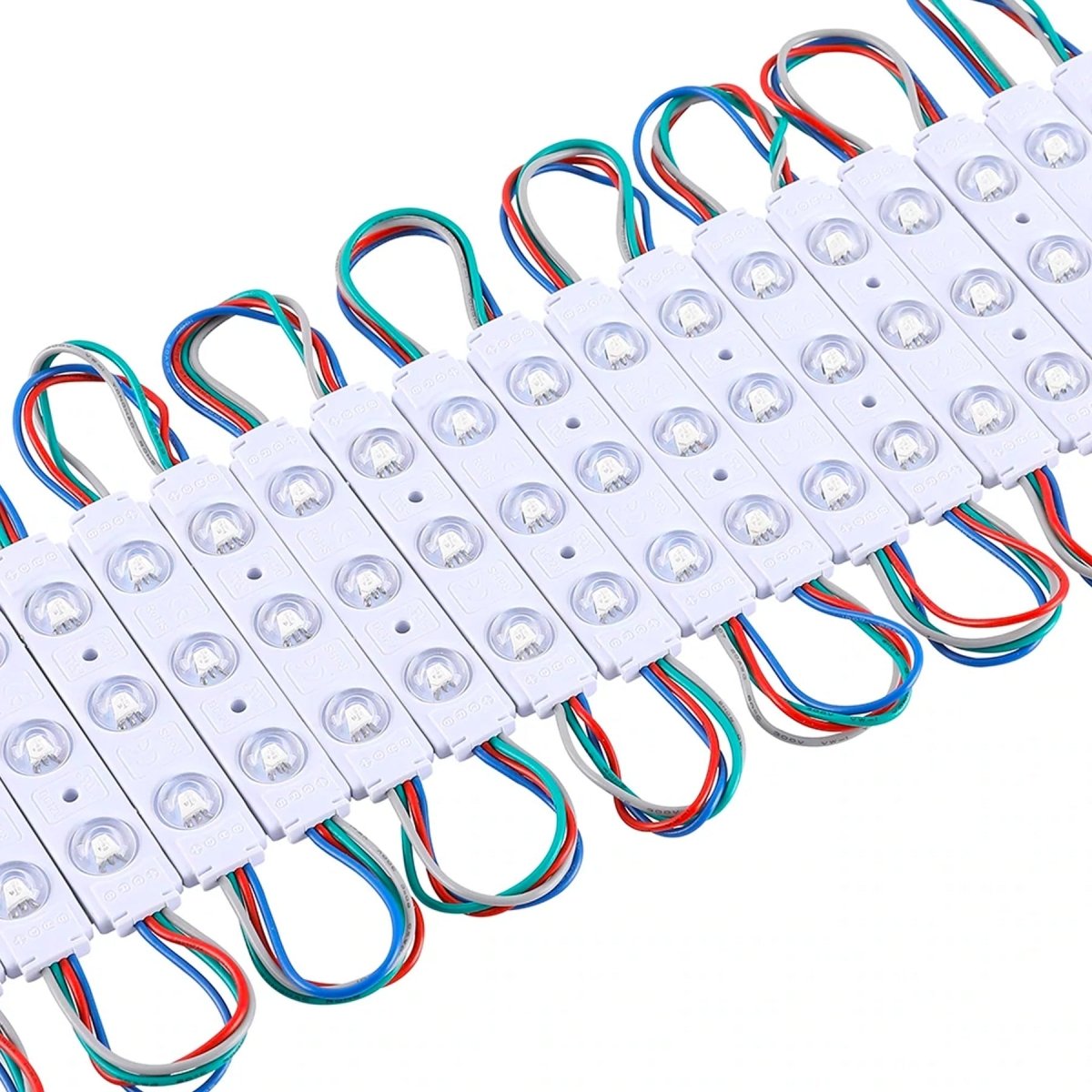

0.65W LED Module Lights For Advertising Sign Letters - 45-Pack - 3 LEDs/Mod - 7000K - UL Listed

$51.80 $77.18
Shipping calculated at checkout.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Estimated Delivery:6days-8days,the delivery time for cabinets may take 18-20 business days(Time frame may vary due to extended holidays) .

Add a stand out message for your customers

Specifications

Brightness: 20 Lumens
Color Rendering Index(CRI): >75 CRI
Dimensions (L x W x H): 3.42x0.68x0.32 Inch
Fixture Color: RGB
IP Rating: IP65 Rated
LED Type: SMD5050
Lumens: 20 Lumens
MPN (Part No.): MD012
Operating Temperature: -13 Degree F To 140 Degree F
Return Policy: 30 Days Return
Safety Rating: UL, CE and RoHS certified.
Voltage: 12 DC Volt
Warranty: 5 Years
Watt: 0.65 Watt

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

LED Module Lights, RGB Color Changing, Waterproof Business Decorative Light, For Storefront/Window Strip Light/Letter Design

The 0.65W LED module powered by high output SMD5050 ensures excellent color conformity with no spots in 8-15cm depth signs for utilization in airports, malls, metros, banks, or any other building. The 160 degree beam angle along with special optics allow for even and smooth illumination of the depth sign. The 3 LED chips being encapsulated in 99.99% gold wire along with silver-coated pure copper bracket allows for maximum heat dissipation and product ductility. A maximum of 20pcs modules in a series can be connected and a power wire of less than 2m when maintained between power supply and module ensures consistent brightness all over. As CE, RoHS and UL certified product, the module is safe for use.

20
Lumens
5
Years

Features of LED Module - RGB - 3 LED/Module - 0.65W

  • Available Wattage: 0.65W
  • Color Temperature Available: RGB
  • Luminous Flux Available: 20 Lumens
  • Beam angle: 160°
  • Lifespan: 50,000 hours
  • Voltage: 12V DC
  • CRI >75
  • IP65 Rated
  • Working Tem. : -13°F to 140°F

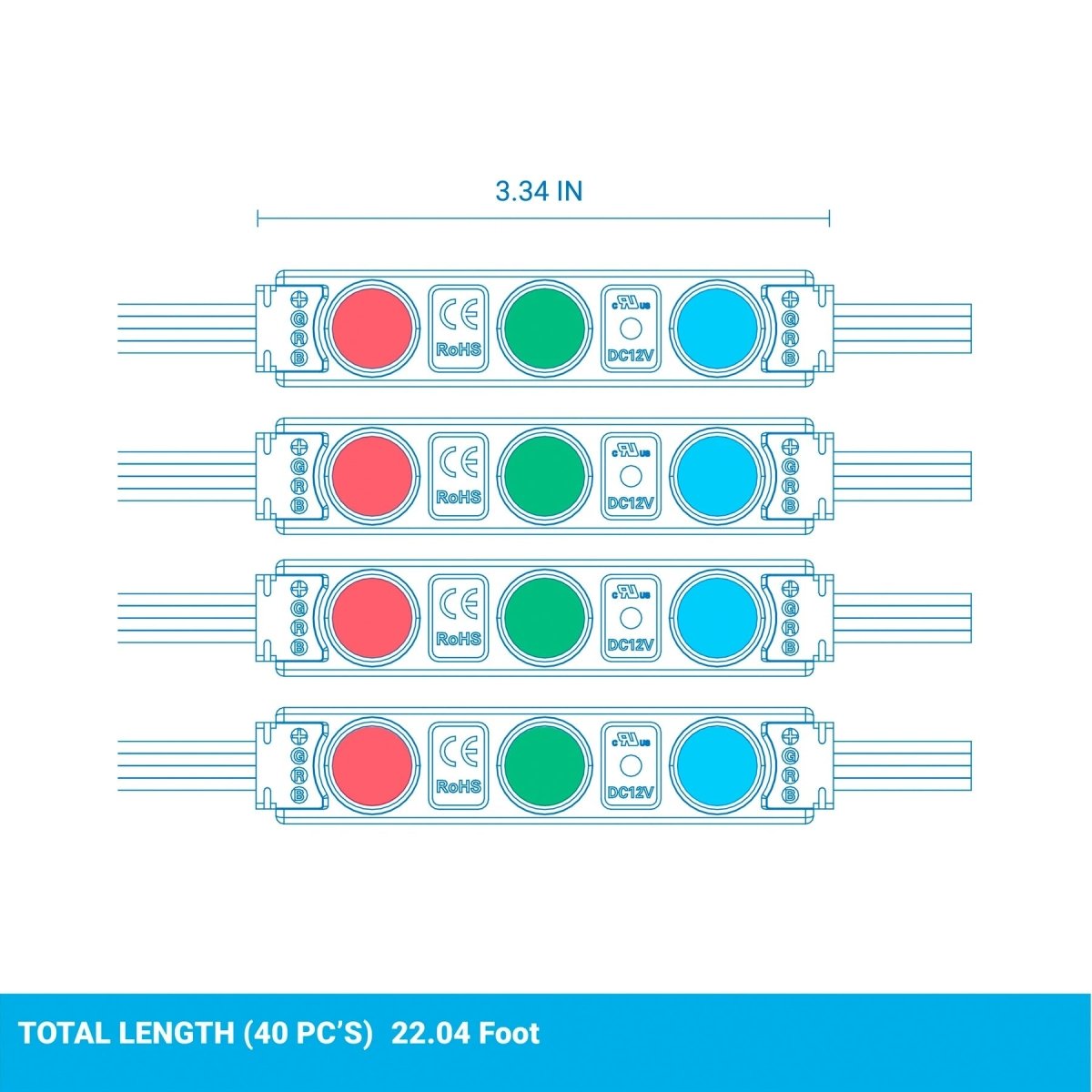

  • Dimension : 3.42x0.68x0.32 In
  • UL, CE and RoHS certified.
  • 5 years of Manufacturer's Warranty

LED Module IP65 Rated

The module having a total of 40 pcs of LEDs is eligible for use in both indoor and outdoor conditions as the driver that comes with it is rated as IP65. The IP65 driver protects the module against dust, shock, moisture and even water ejected from the nozzle.

LED Module 160° Beam Angle

Utilizing the power of SMD LED chips and high quality optics (special lens), the module is capable of emitting light with an angle of 160 degrees which ensures an ultra-wide beam (very wide beam of 120°+40°) of light to cover larger areas with better light distribution by completely eliminating the dark spots.

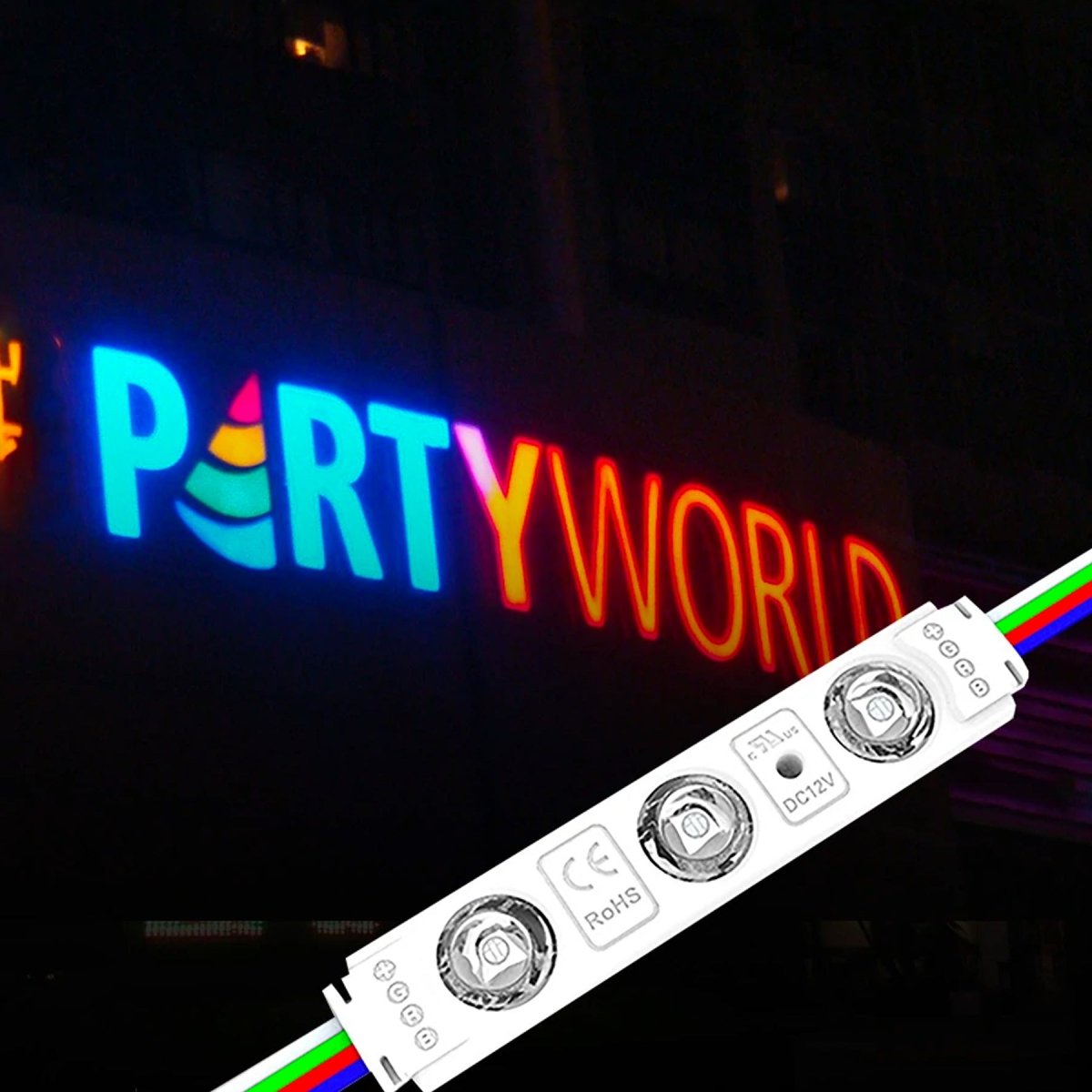

LED Module Recommended For Airports, metros, Banks, Buildings And Shopping Malls, etc.

The LED module has multiple uses such as sign lighting, back lighting, indoor or outdoor commercial sign displays, light boxes and advertisement signs. You can utilise up to 3 modules per square foot of an area.

5 Year Warranty CE, RoHS And UL Certified

The module being certified by CE, UL and RoHS meets the minimum regulation for product safety, health and environmental conditions. It’s a risk-free product as you have a 5 years of warranty from the manufacturer’s end.


CRI ≥ 75  DC 12V| 20 LM | 7000K

(Anti-Dusting, Anti-Moisture, Water Proof, Anti-Shock)

A CRI of above or equal to 75 on a scale of 100 means the module is above average in color rendering of objects and considered ideal for outdoor depth sign lighting. Further, this module prevents ingress of dust, moisture, shock or even water up to a certain degree.


No Spot Good Color Conformity SMD5050 LED Chips

The LED modules having SMD5050 LED chips are of high quality as they follow ANSI binning standards. These LED chips have been optimized to enable low cost and yet better performance than many cheap quality LED chips available in the market. These LED chips ensure good color conformity with no spot within LED modules.
