Cabinet Door Concealed Hinge Mounting Kit - Hickory Hardware

Clear Blue

Regular price $16.55
Sale price $16.55 Regular price $18.39
Save 10%
  • Limited Lifetime Warranty
  • Estimated Delivery:Dec 15 - Dec 19,the delivery time for cabinets may vary.

  • Free Shipping on select orders & Returns on all orders.

Mounting Templates Collection Cabinet Door Concealed Hinge Mounting Kit - Hickory Hardware

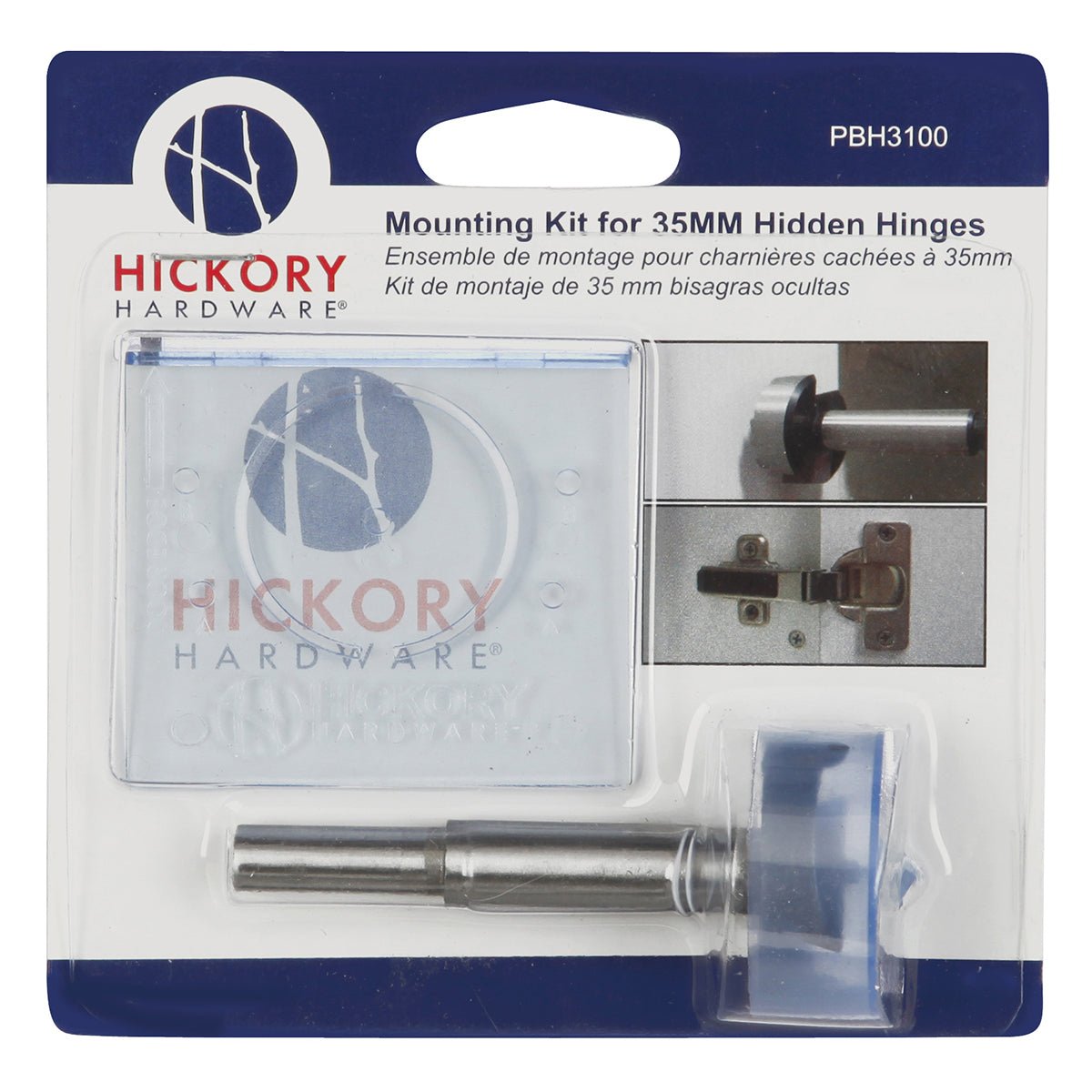

A complete drill template kit to prepare cabinet doors for installation of concealed euro style hinges. Includes the Forstner drill bit necessary to mortise the mounting holes in your cabinet doors to accept 35mm hinge cups. Consult the instructions for your particular hinge model to determine all mounting holes and adjustments relative to cabinet as this can vary by model and between manufacturers. Not all euro style hinges use 35mm cup size.


  • Mounting Kit for 35mm concealed hinges
  • Aligns with door edge for easy cup location
  • Includes 35mm Forstner drill bit
  • Opaque material allows easy reference to marks and measurements on mounting surface for accurate hardware placement
  • Instructions included
  • Since 1893, Hickory Hardware® has built a reputation as the world's premier producer and preferred supplier of quality decorative cabinet Hardware.

Additional Hickory Hardware Links

Product Specifications

Collection: Mounting Templates Collection
Included In Package: Door Template and 1-3/8 Inch (35mm) Forstner Drill Bit, Instructions provided on packaging
Material: Plastic
MPN (Part No.): PBH3100
Projection (IN): 3/8 Inch
Weight (LB): 0.19
Country of Origin: China
Length (IN): 2-1/2 Inch
MPN: PBH3100
Pack: 1-Pack
Warranty: Limited Lifetime
Width (IN): 2-1/4 Inch
