Cabinet Door Hardware Mounting Guide - Hickory Hardware

Clear Blue

Regular price $5.75
Sale price $5.75 Regular price $7.19
Save 20%
  • Limited Lifetime Warranty
  • Estimated Delivery:Jul 23 - Jul 27,the delivery time for cabinets may vary.

  • Free Shipping on select orders & Returns on all orders.

Mounting Templates Collection Cabinet Door Hardware Mounting Guide - Hickory Hardware

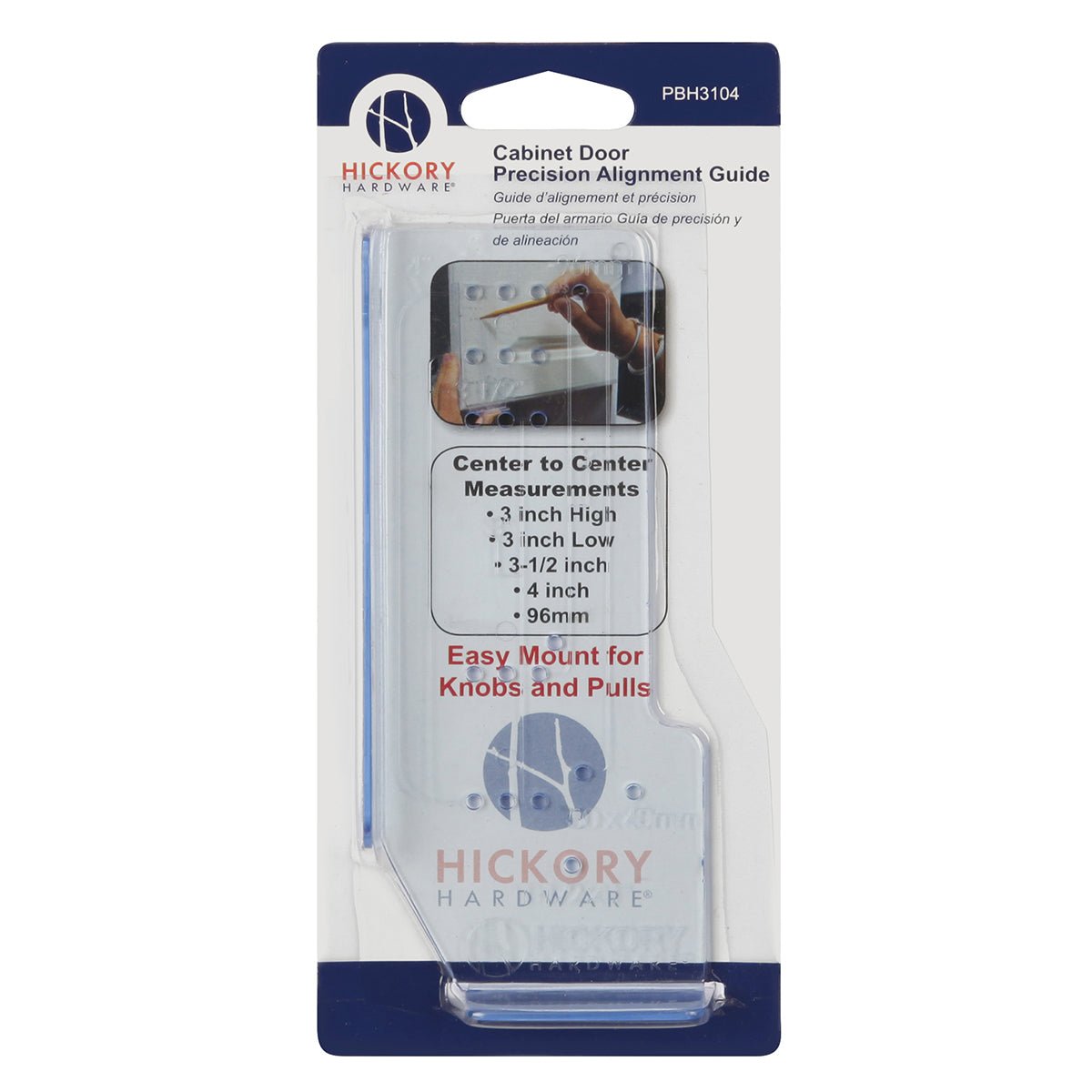

Cabinet door precision alignment guide, to easily mount knobs and pulls to your cabinets with precision. Features a cluster of knob hole placements, and center to center hole template for the following: 3" (both low and high placement), 3-1/2", 96mm (3-3/4"), & 4". A 3/16" drill bit is recommended for drilling final mounting holes for your hardware.


  • One door alingment guide for precision alignment including corner knob placements
  • Aligns with door corner for easy hardware location
  • Hole placements for most common center to center distances
  • Opaque material allows easy reference to marks and measurements on mounting surface for accurate hardware placement
  • Instructions included
  • Since 1893, Hickory Hardware® has built a reputation as the world's premier producer and preferred supplier of quality decorative cabinet Hardware.

Additional Hickory Hardware Links

Product Specifications

Collection: Mounting Templates Collection
Included In Package: Door Template, Instructions provided on packaging
Material: Plastic
MPN (Part No.): PBH3104
Projection (IN): 1/2 Inch
Weight (LB): 0.1
Country of Origin: China
Length (IN): 6 Inch
MPN: PBH3104
Pack: 1-Pack
Warranty: Limited Lifetime
Width (IN): 2-9/16 Inch
