Drawer Slides Collection Drawer Slide Bottom Mount 3/4 Extension 12 Inch - Hickory Hardware

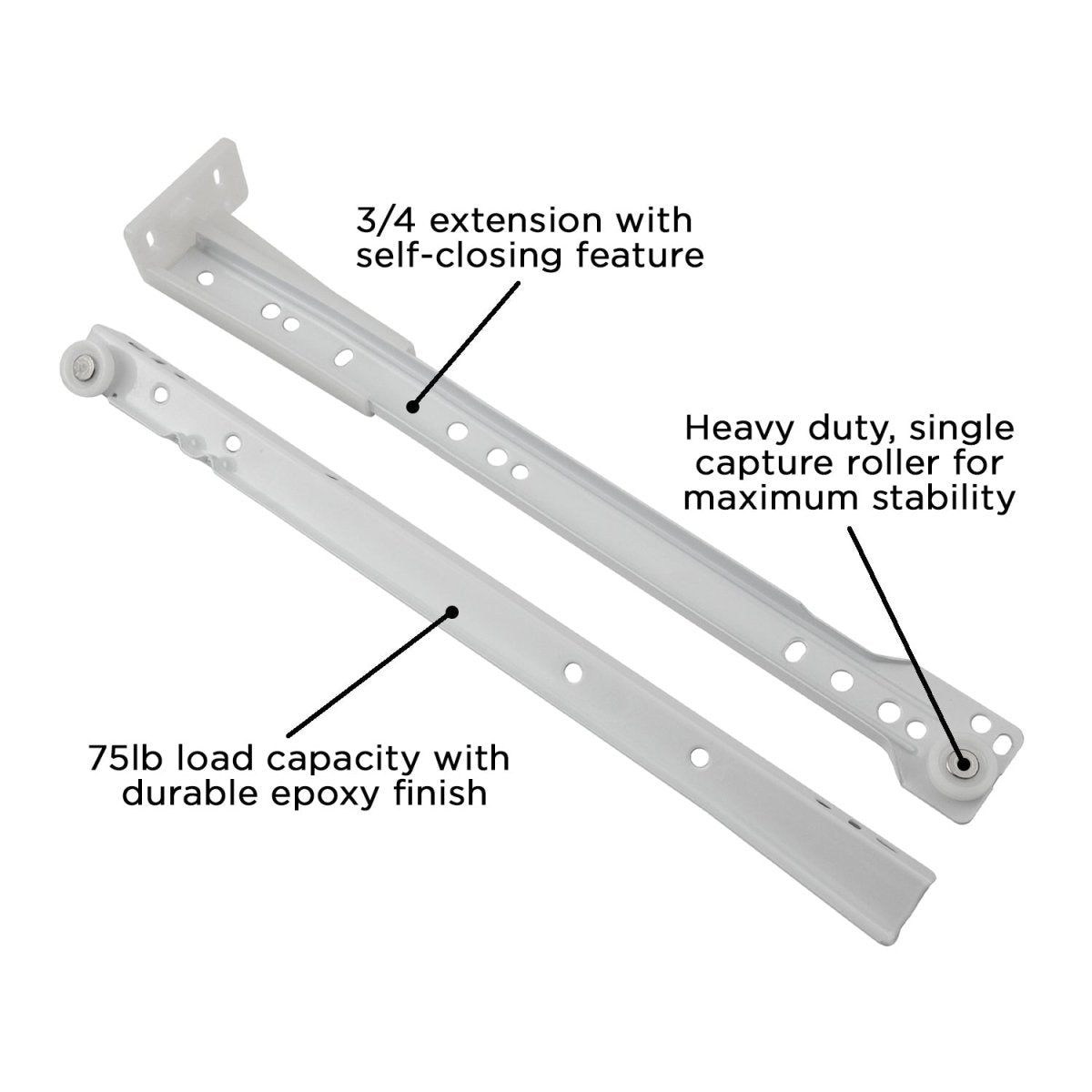

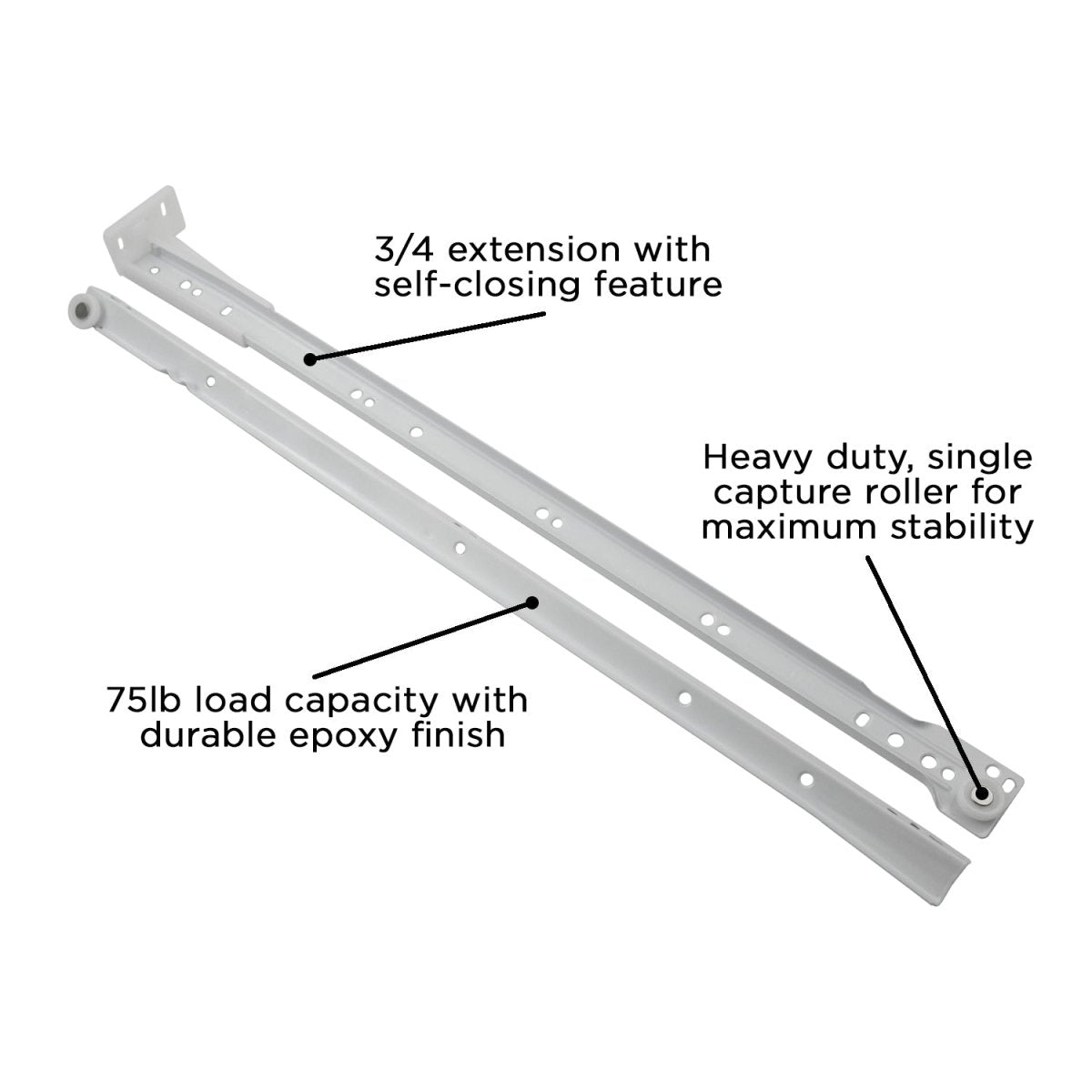

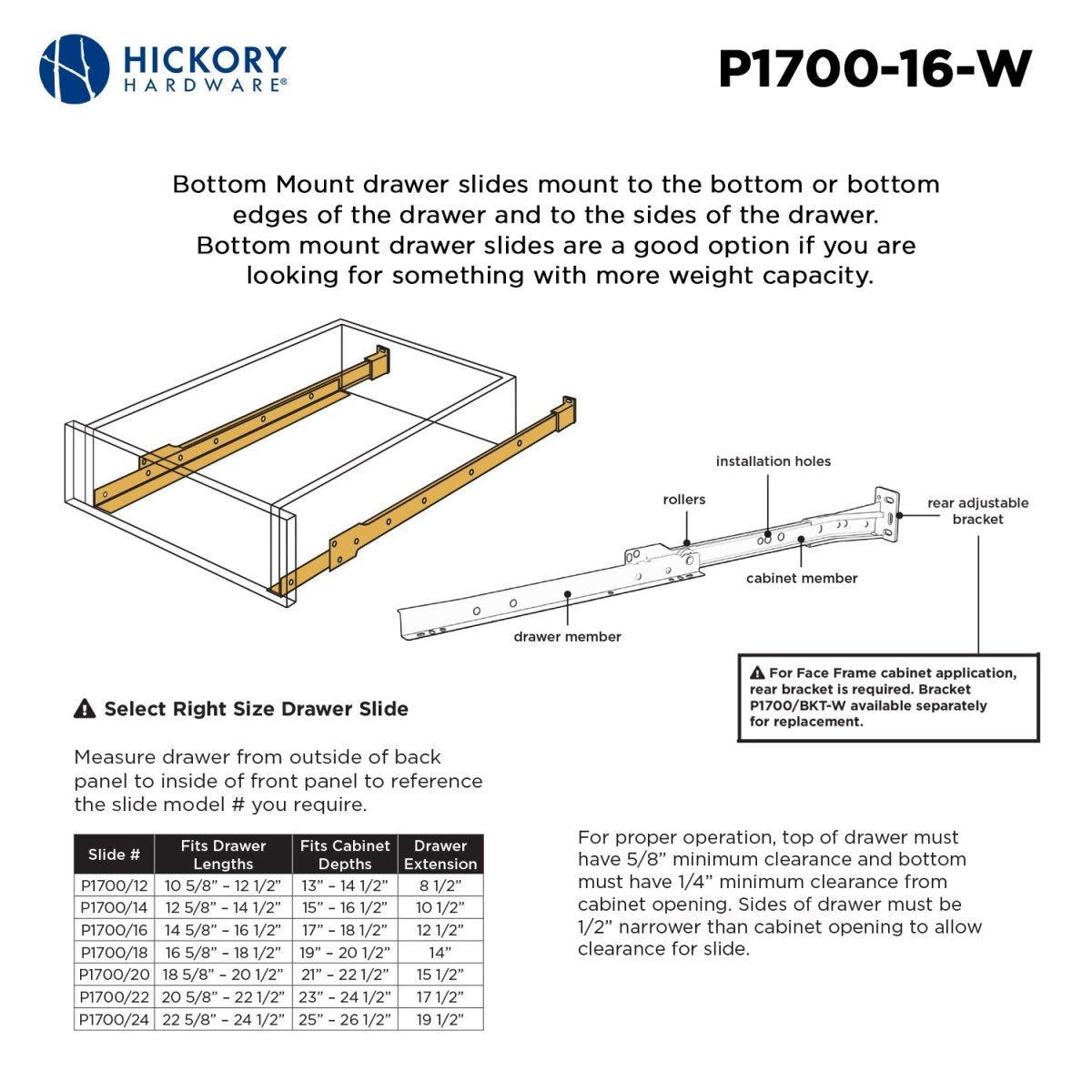

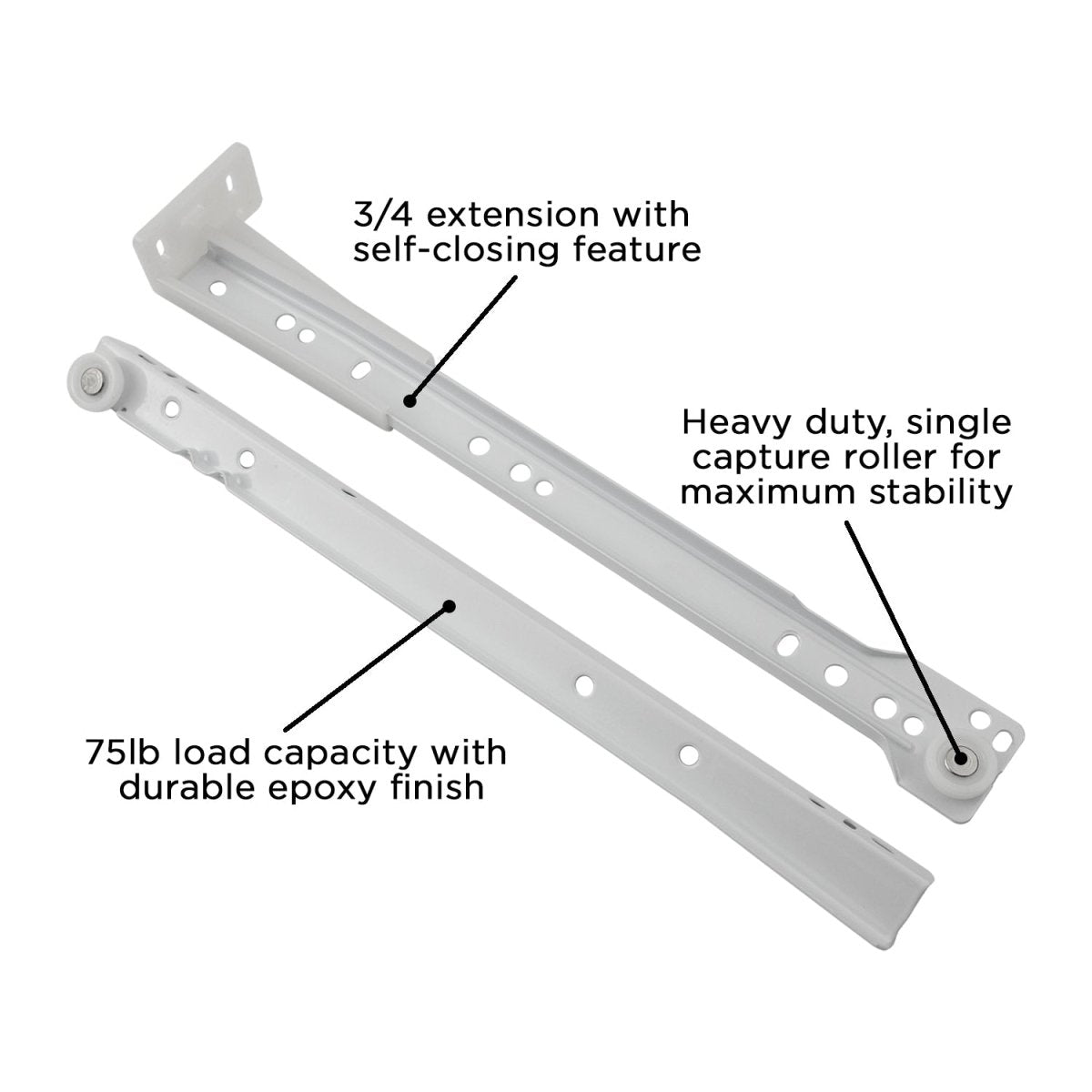

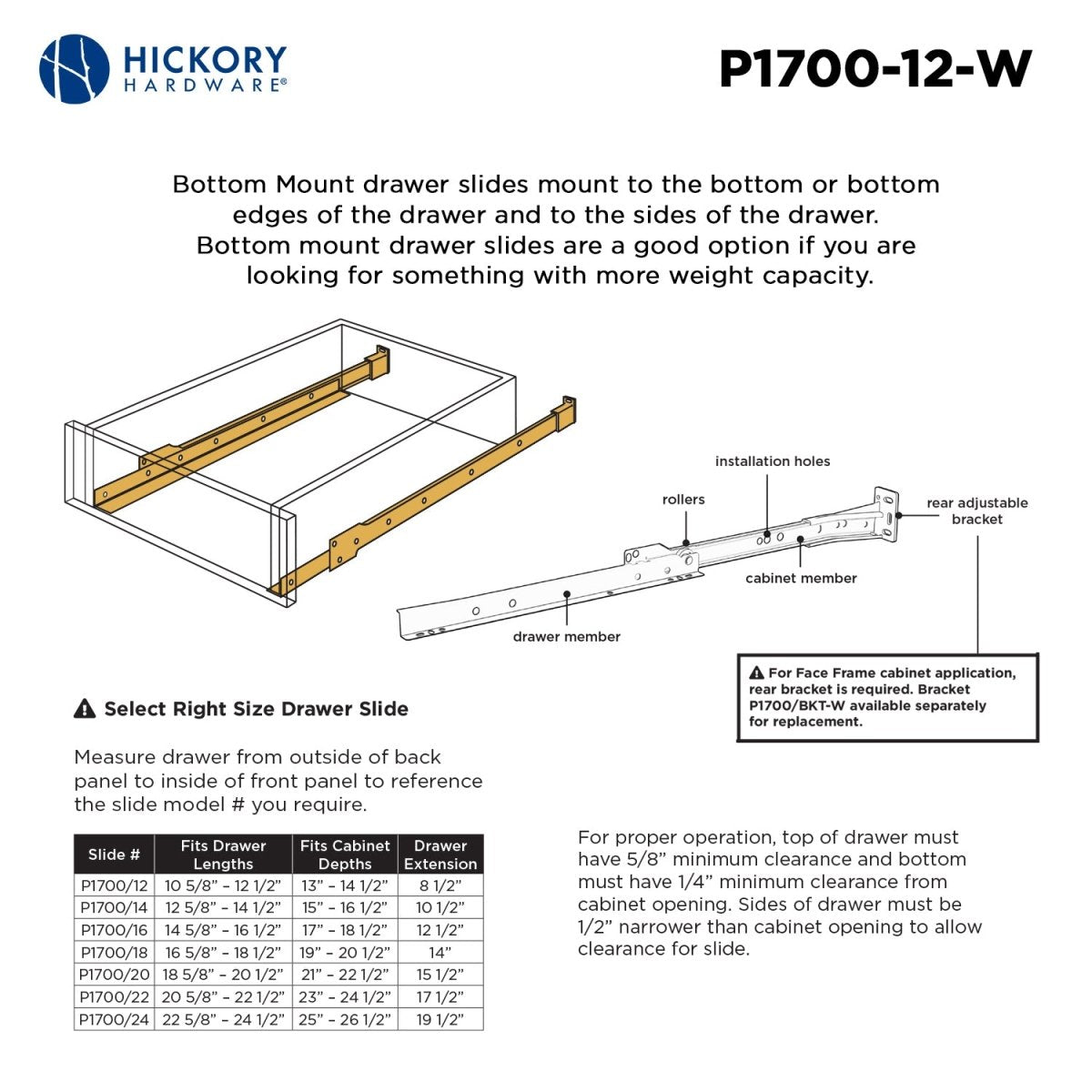

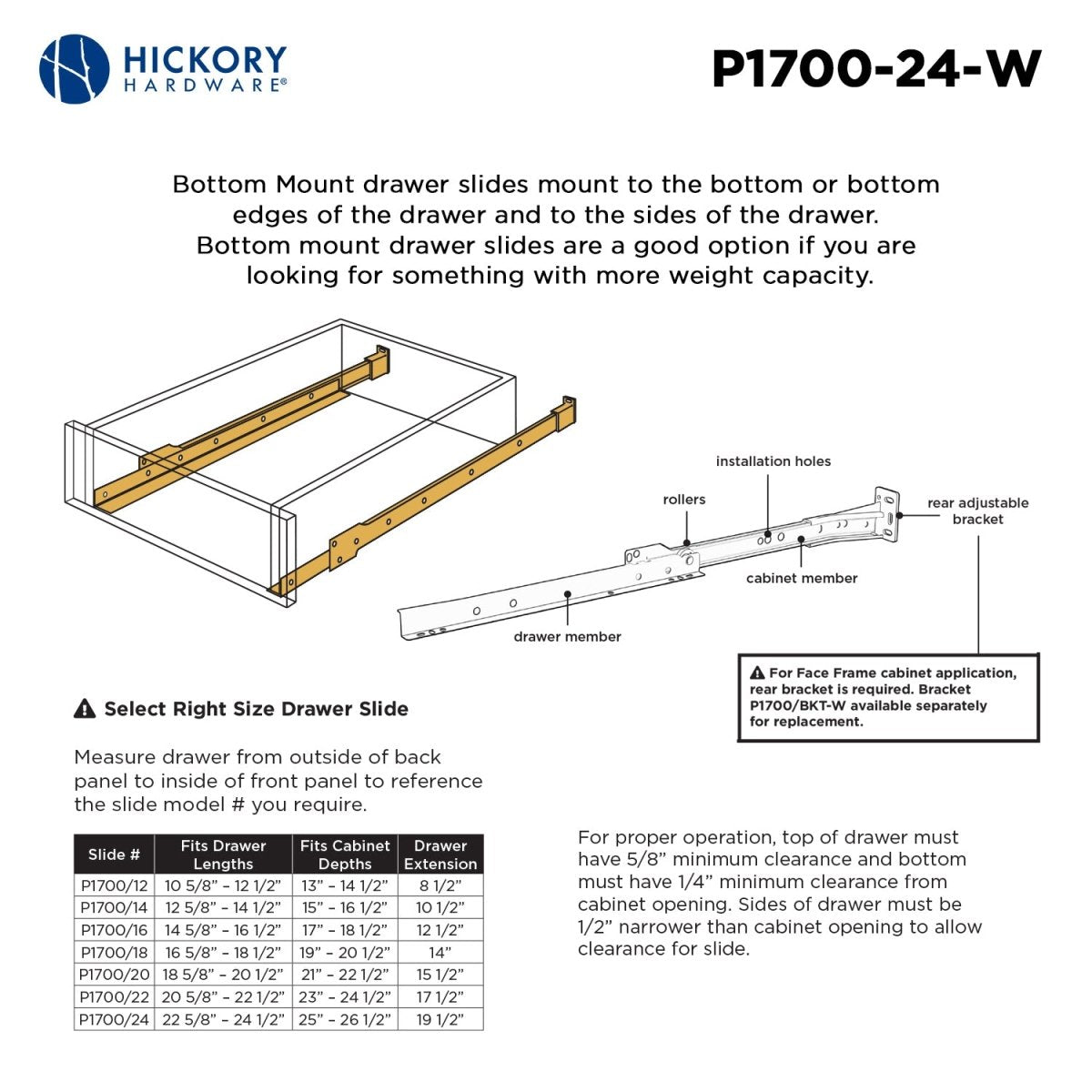

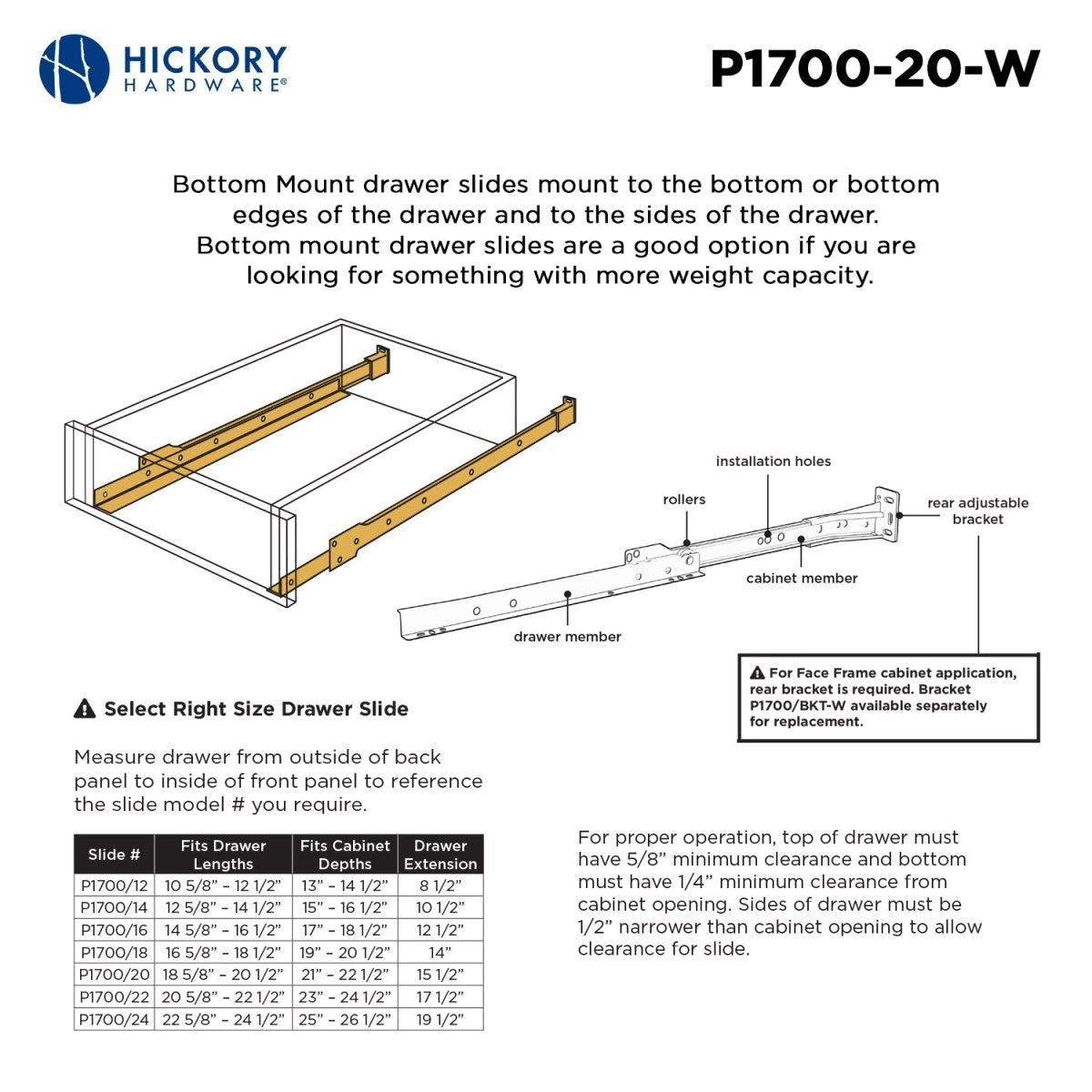

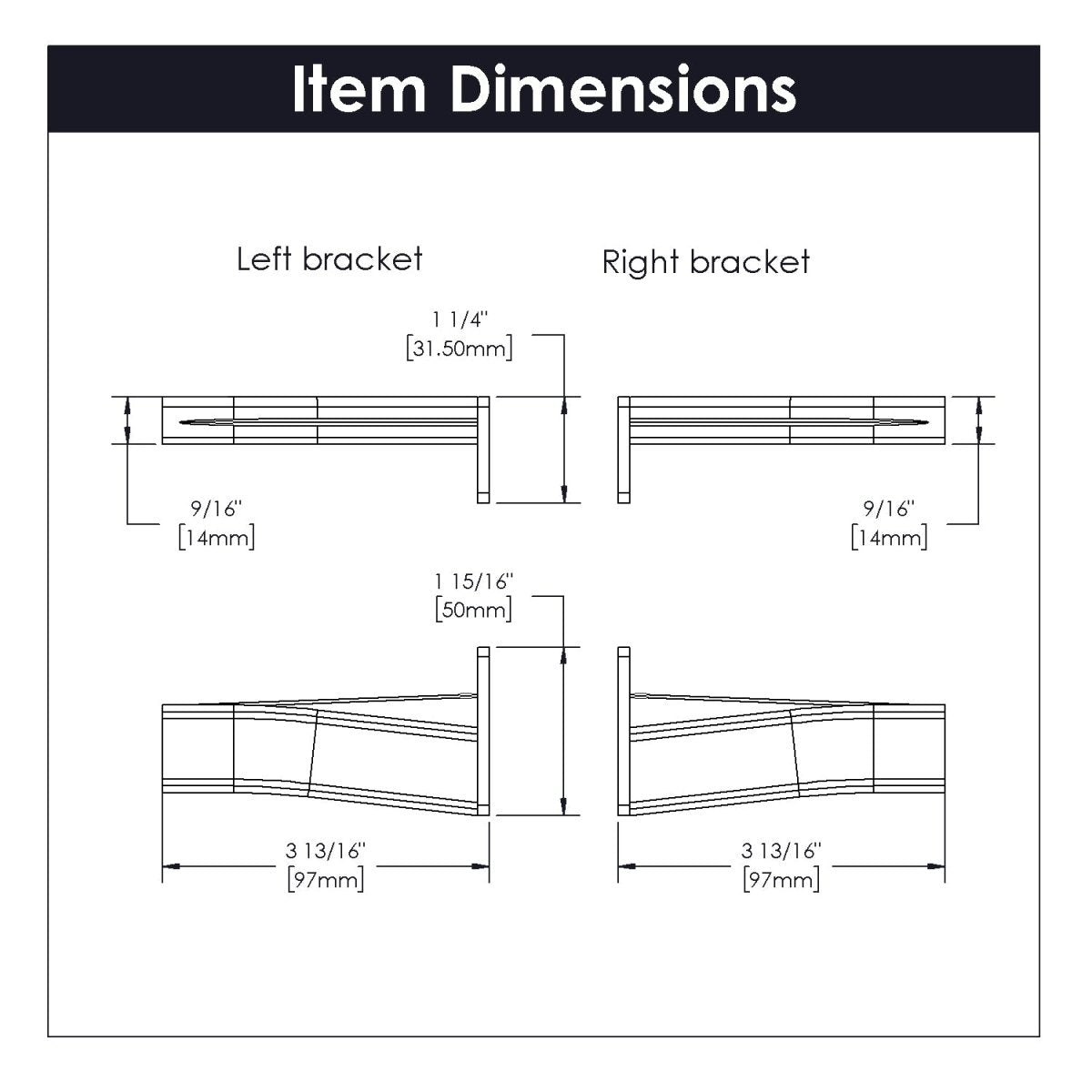

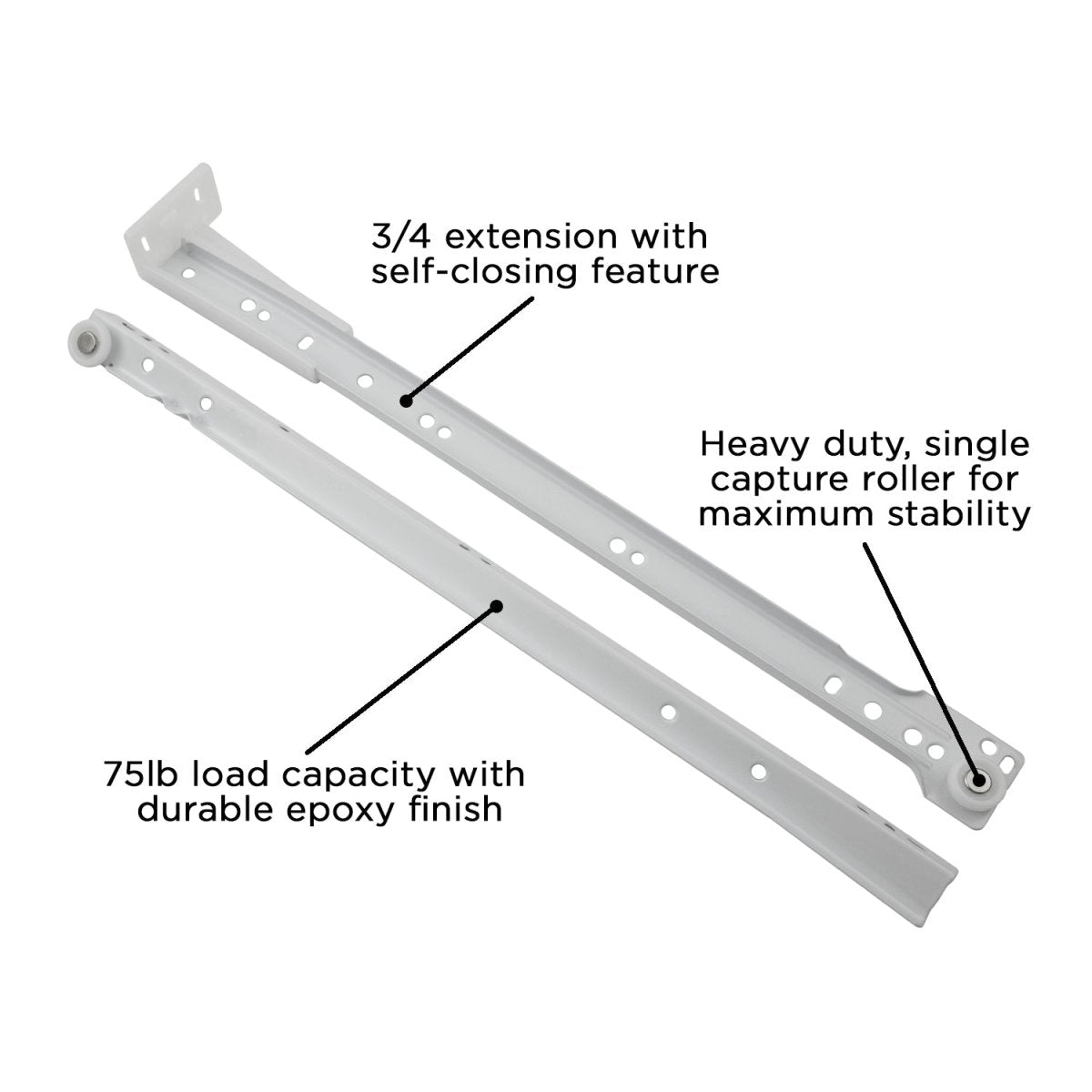

European style roller and polyslide 3/4 extension bottom mount drawer slide, to store all the items you need up to 75lbs. This type of slide is a popular solution because it has a great balance of simple, smooth function and weight capacity. This model wraps underneath the bottom edge on each side of a drawer and can be screwed in place either through the bottom or side; the edge wrapping provides more stability than the other common euro side mount drawer slide. This slide is self closing (it will shut itself during last few inches of travel) with built in stop - simply lift drawer up and over stop to remove from cabinet. Can be adapted to a face frame cabinet application using included rear brackets - see our model P1700/BKT-W bracket also available separately for replacement. Mounting hardware and instructions included for DIY friendly installation.

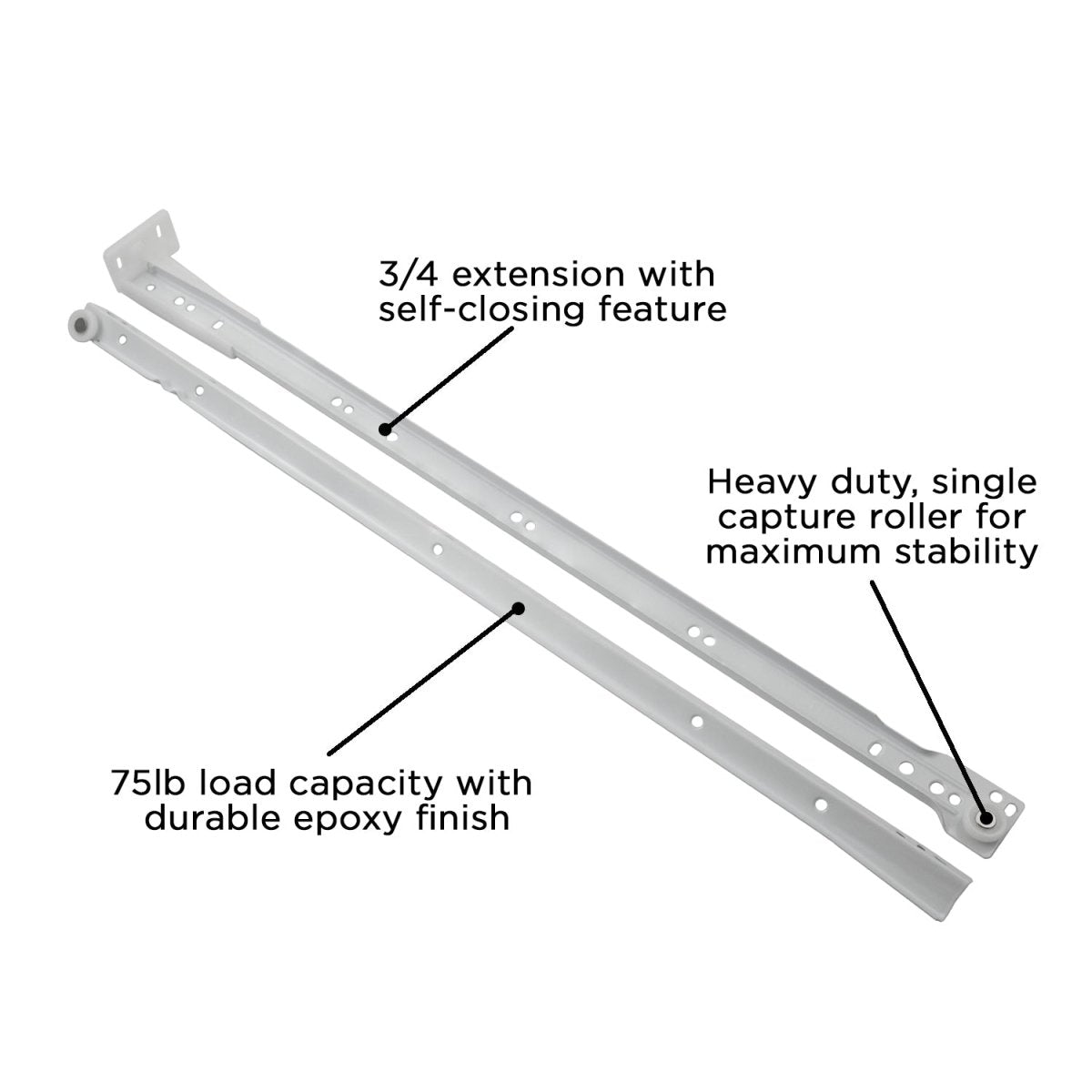

Features:
- All essential mounting hardware included for an effortless installation.

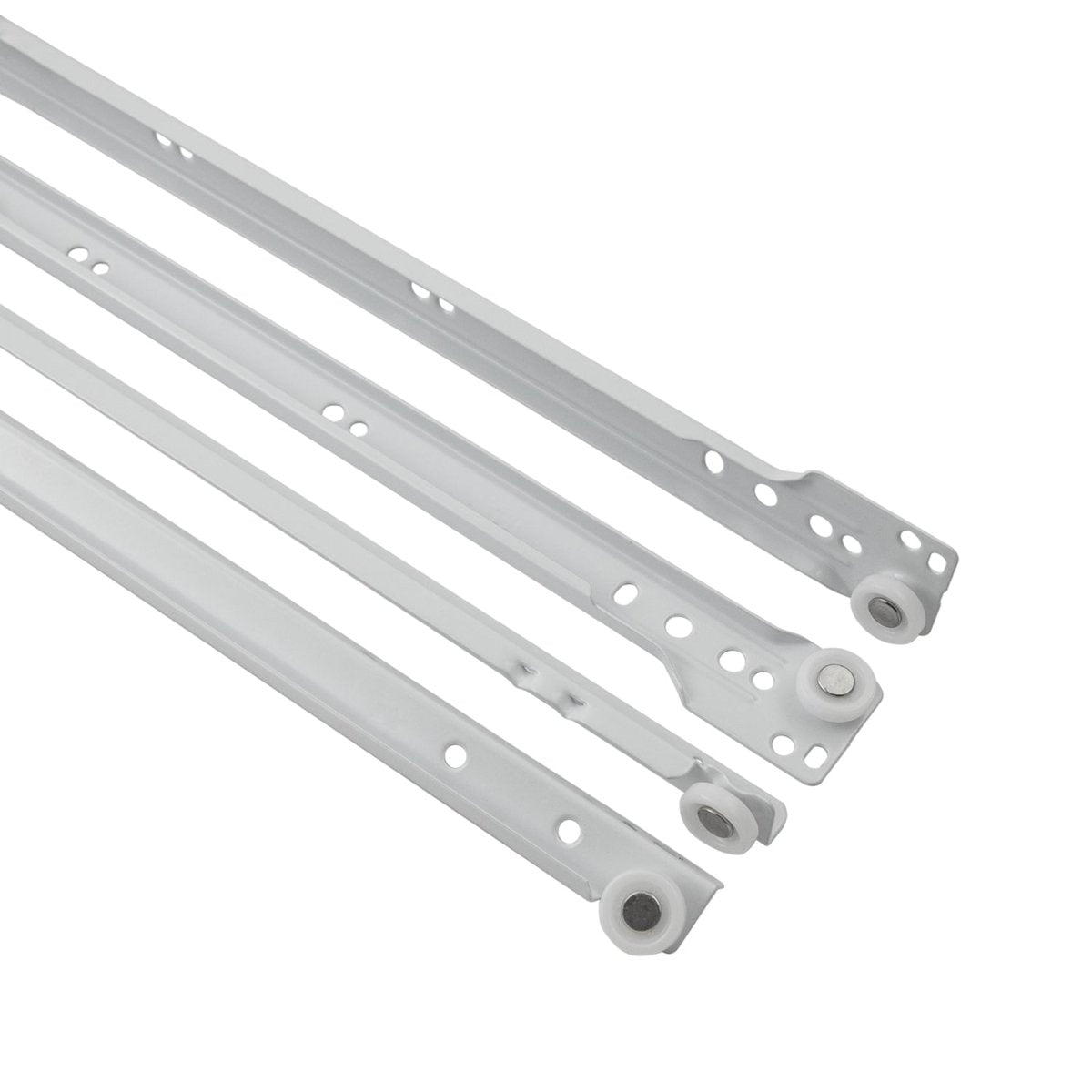

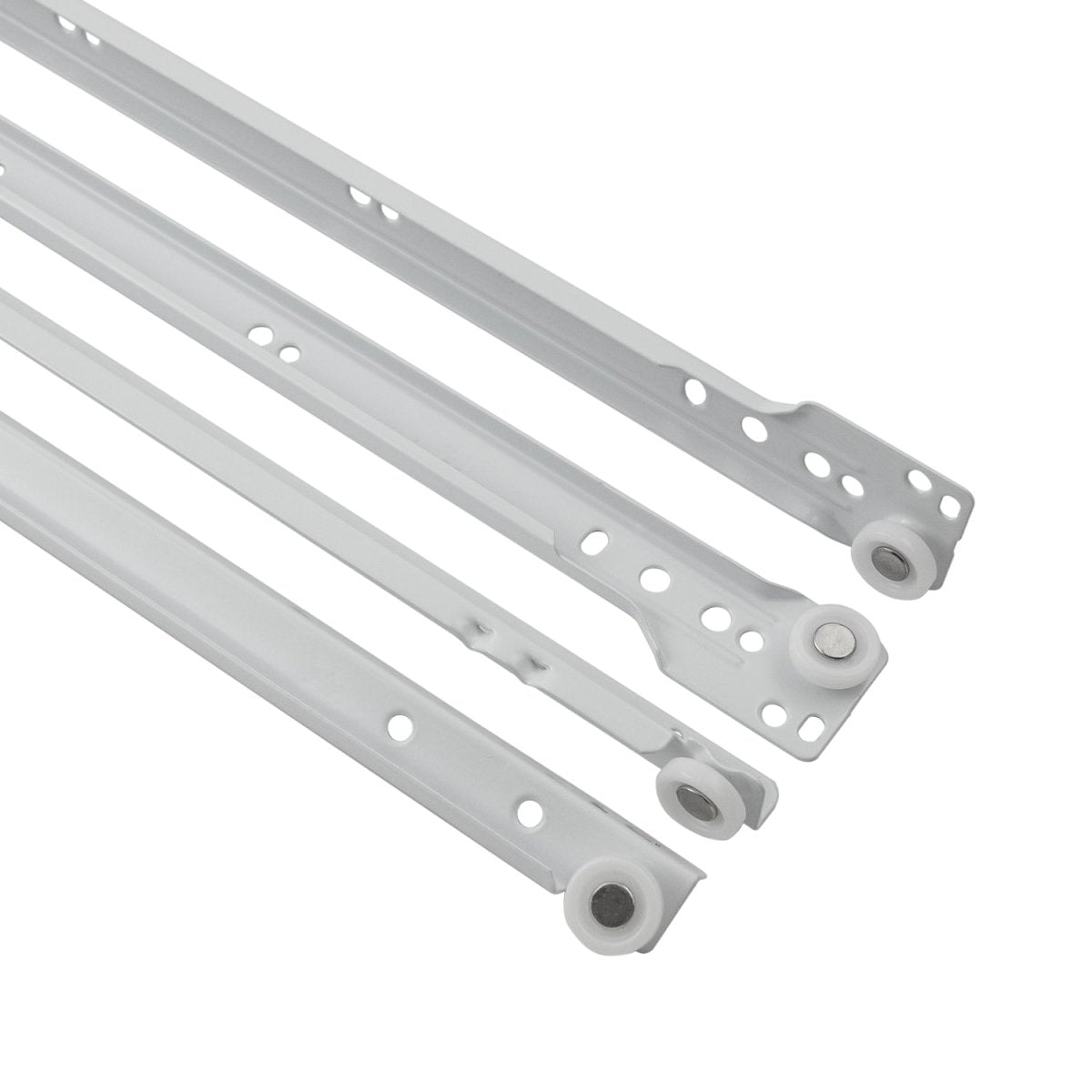

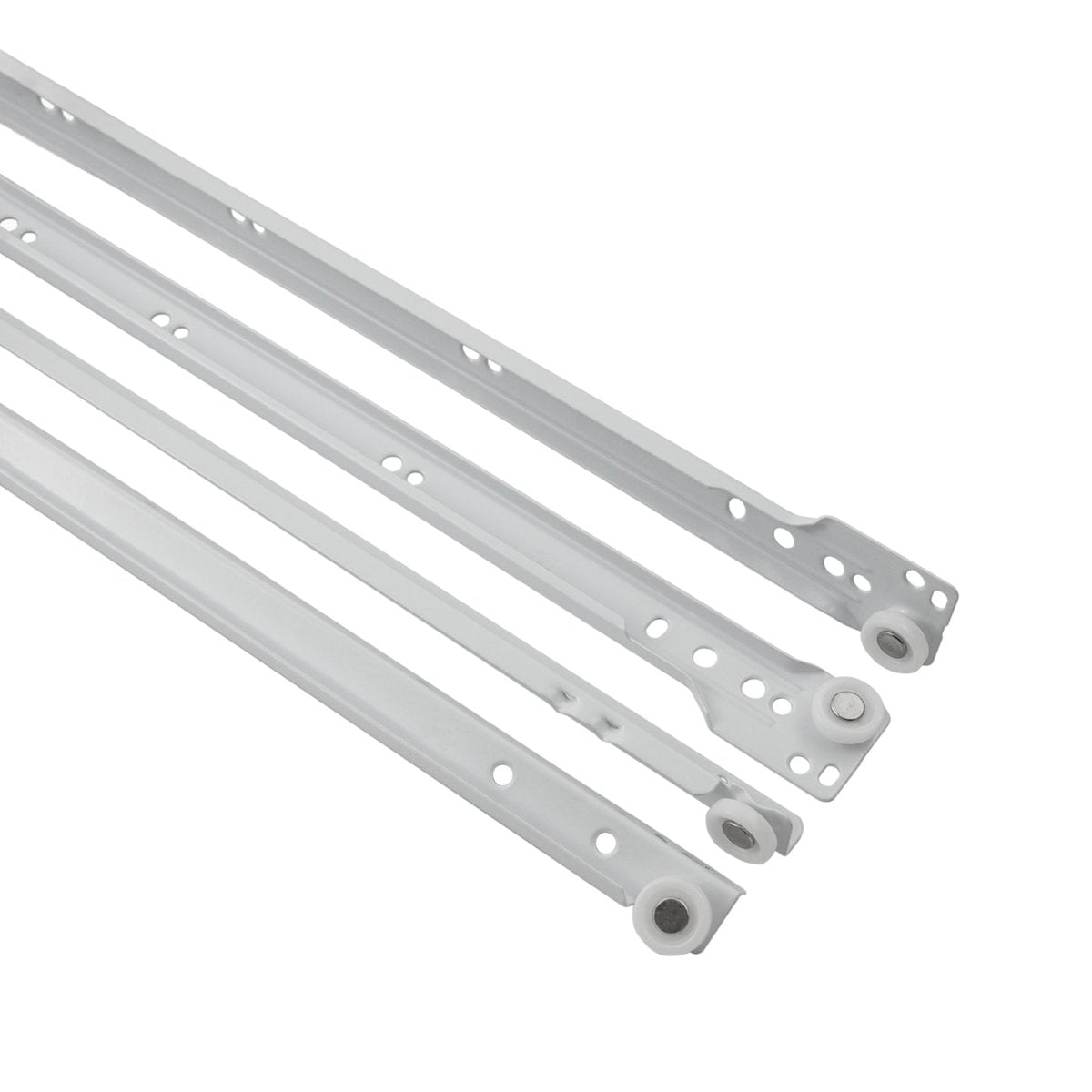

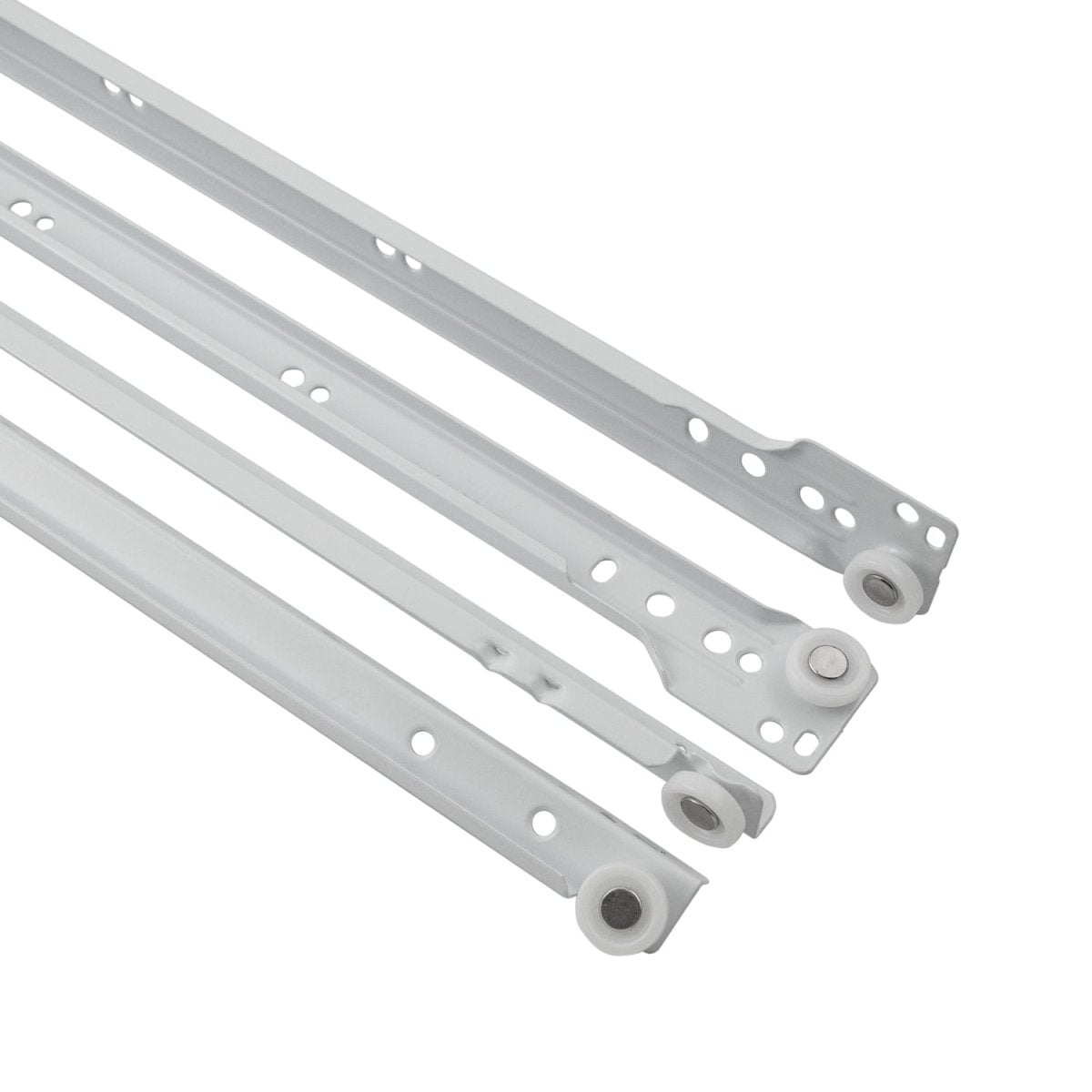

- Roller operation
- Lift-out disconnect
- 75 lb. load capacity
- Durable epoxy finish
- Since 1893, Hickory Hardware® has built a reputation as the world's premier producer and preferred supplier of quality decorative cabinet Hardware.
Additional Hickory Hardware Links

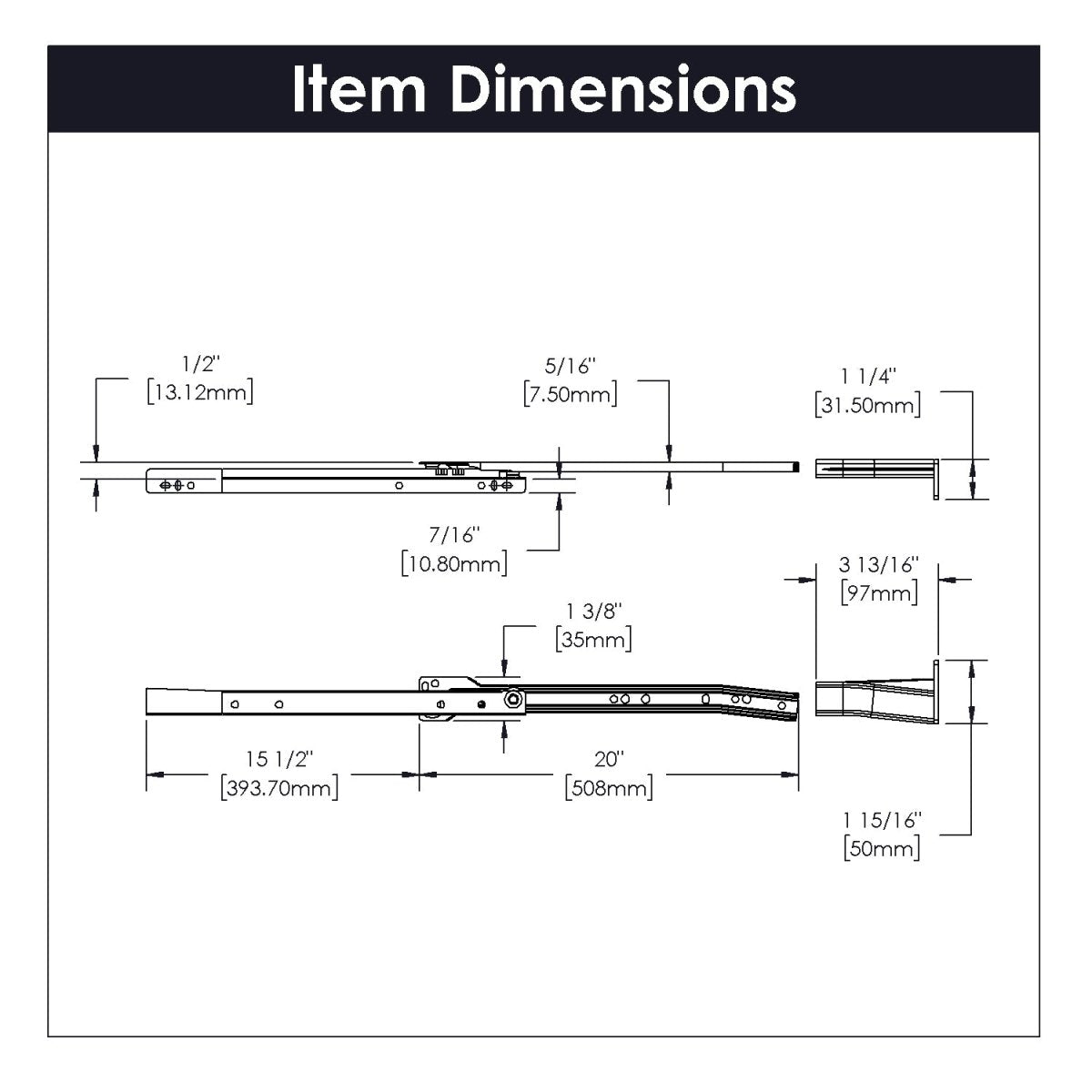

Product Specification & Other Info
Product Specifications
| Collection: | Drawer Slides Collection |

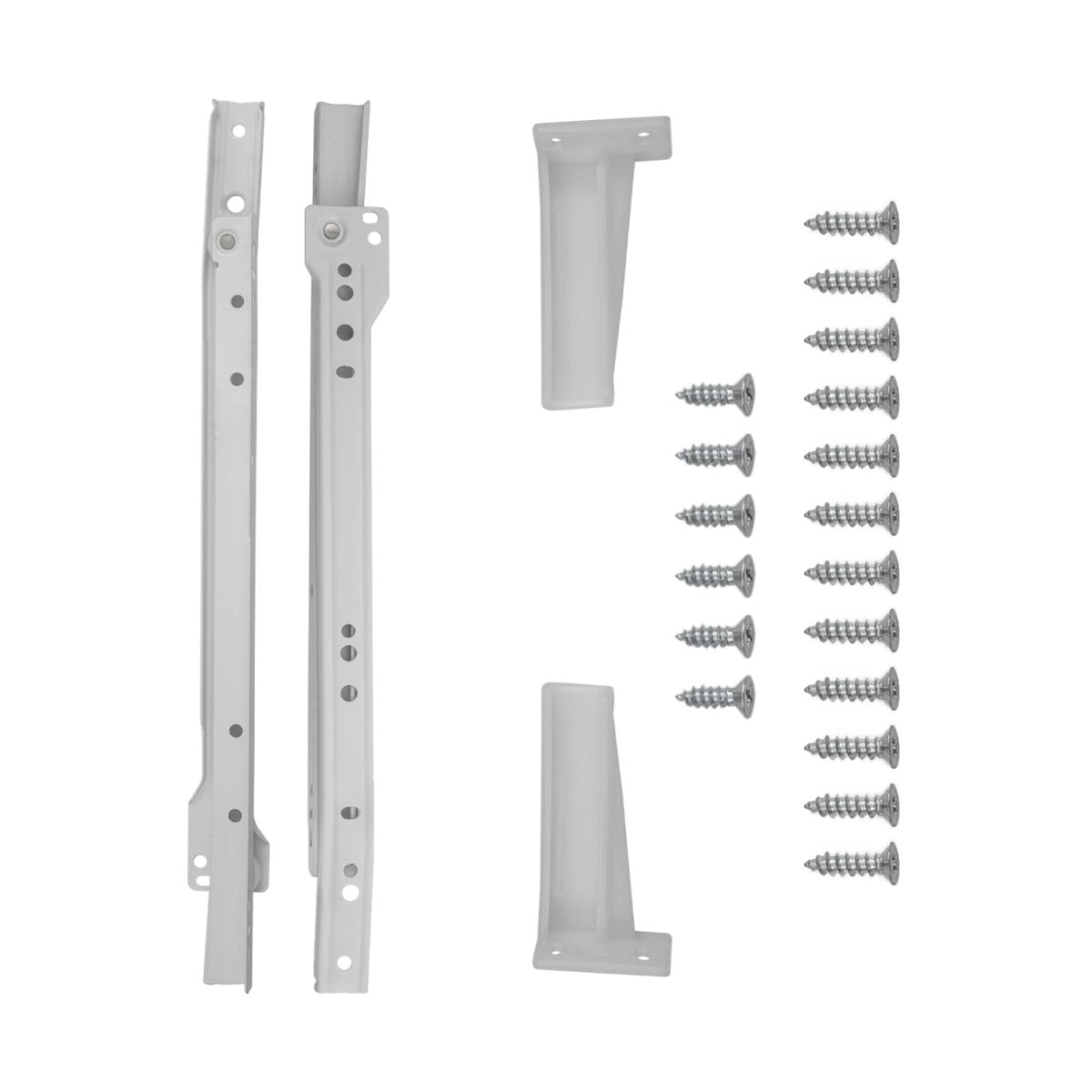

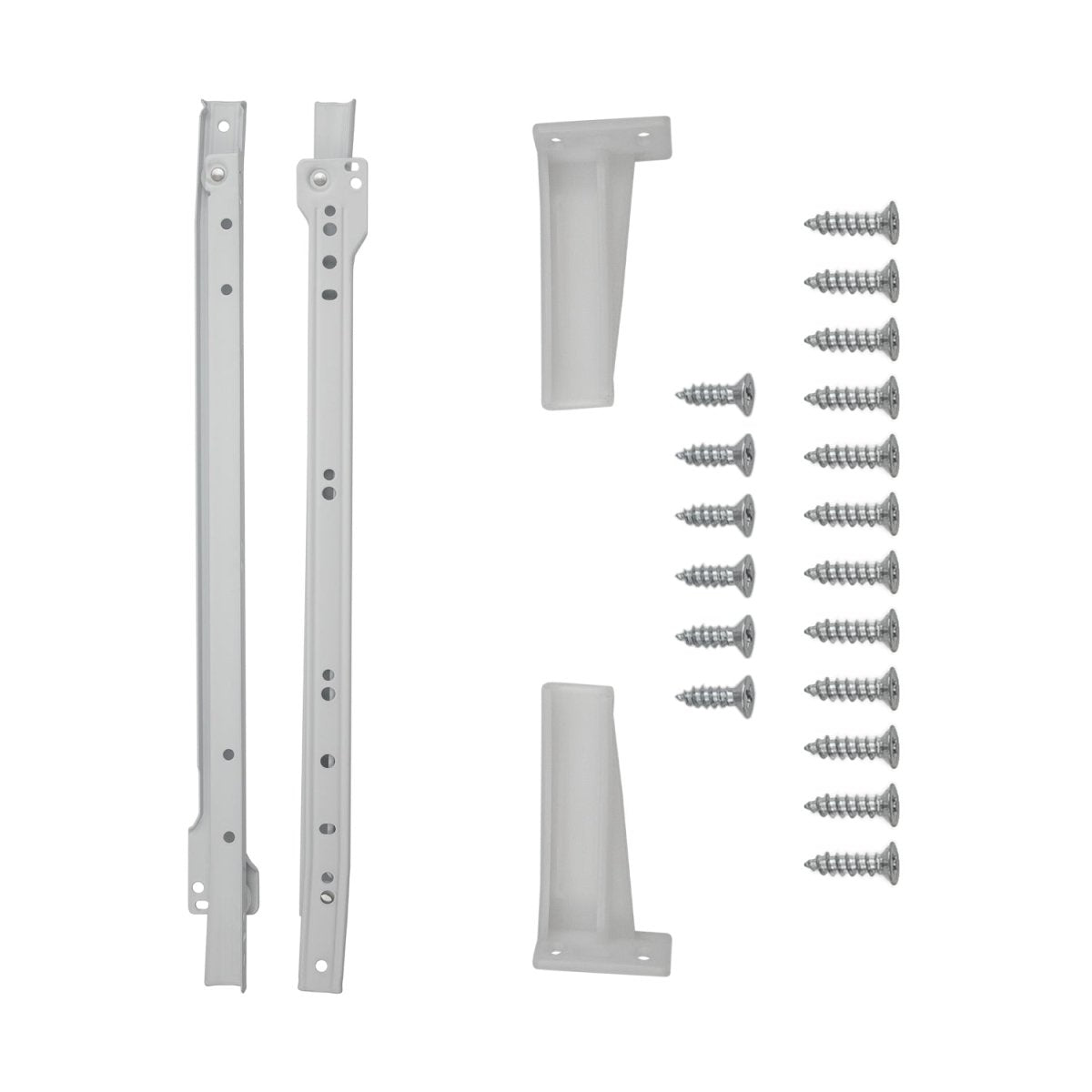

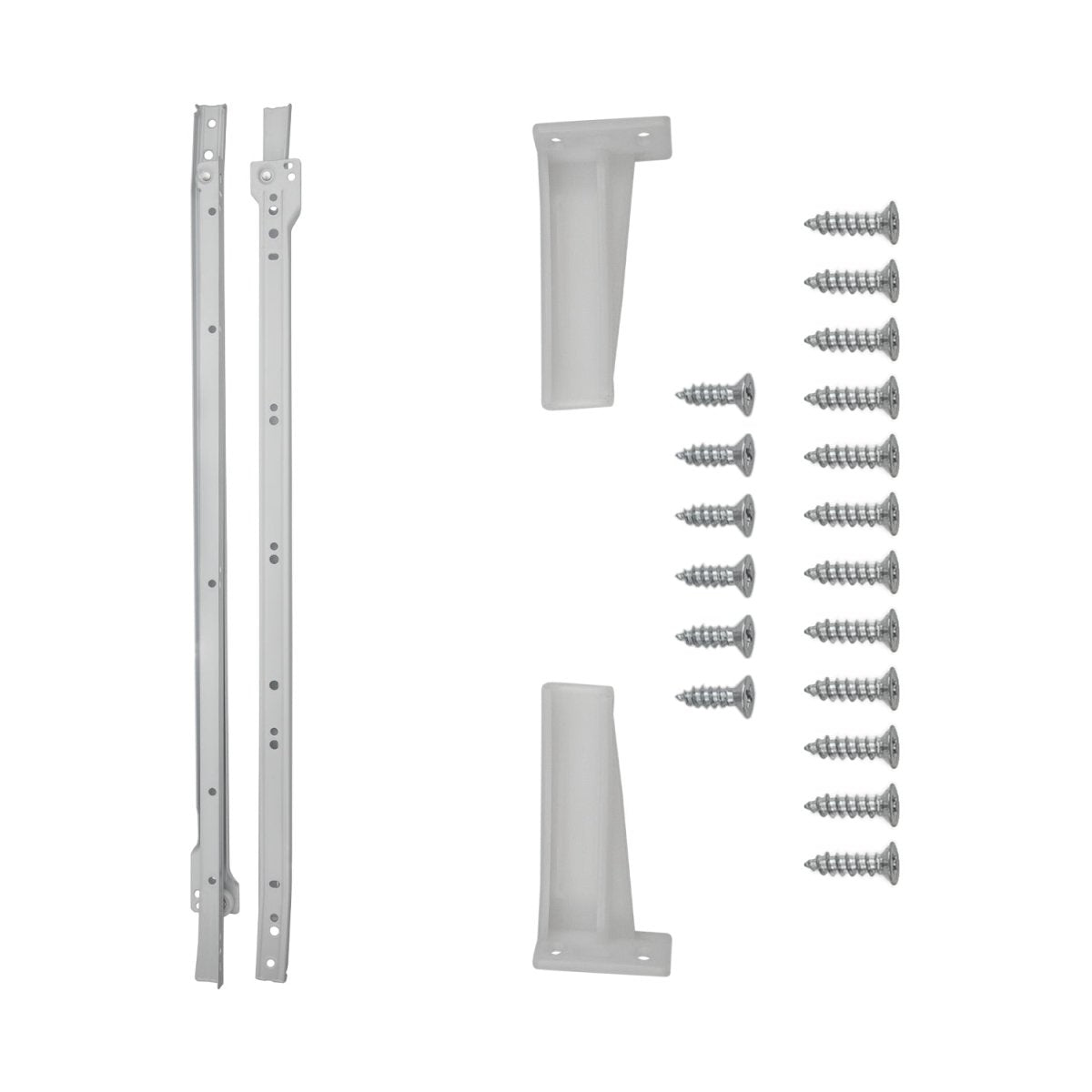

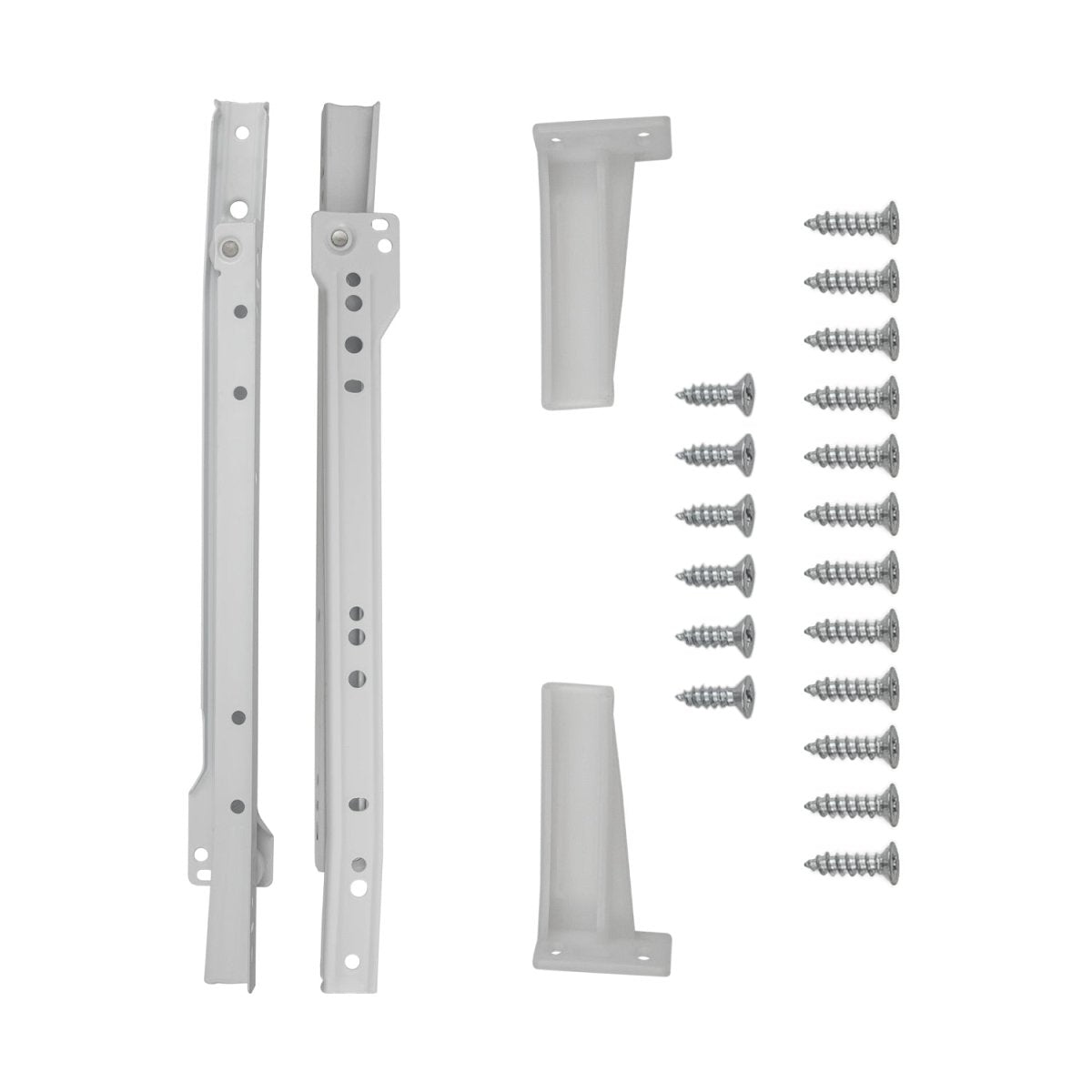

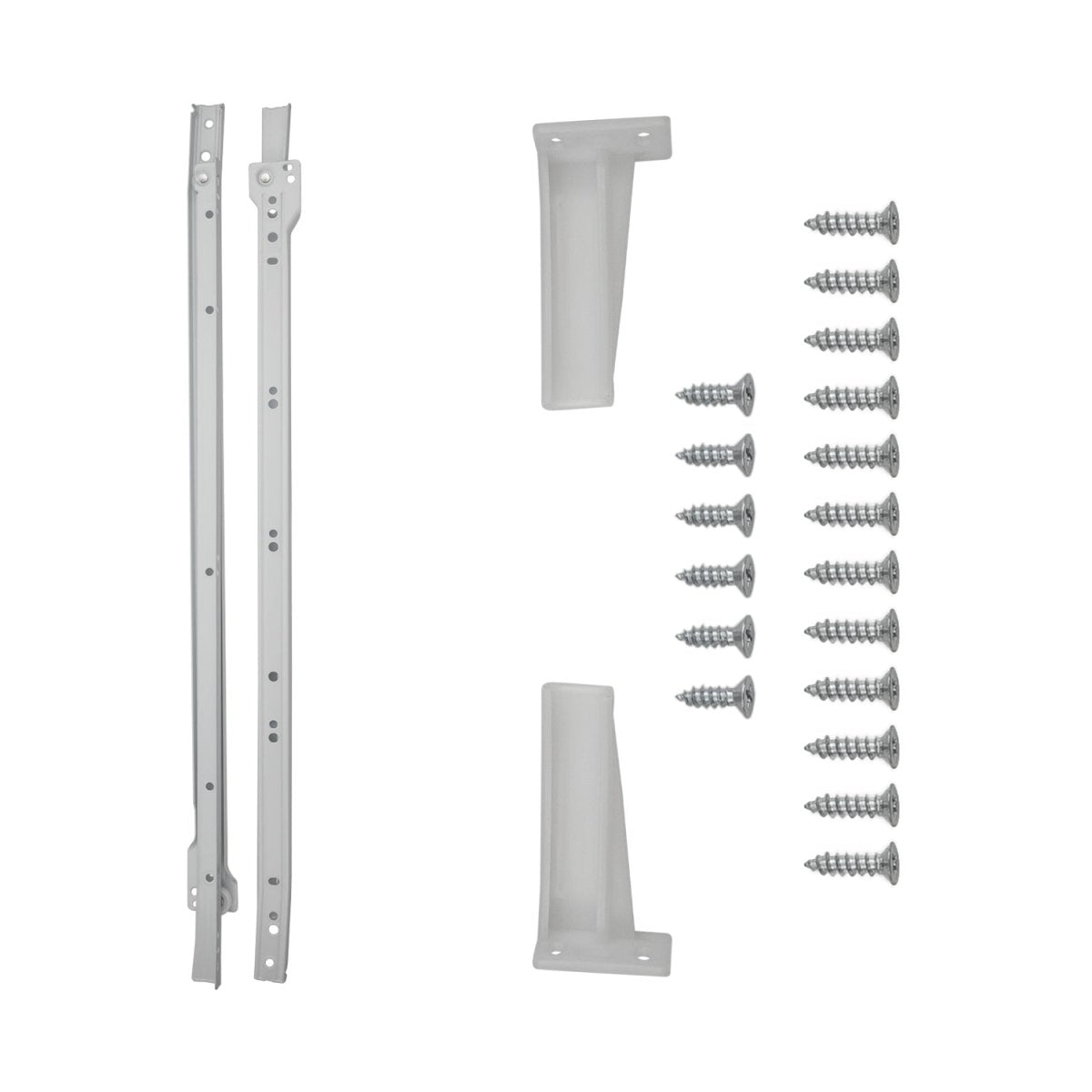

| Included In Package: | Lefty & Righty Slide, Lefty & Righty Rear Bracket, Twelve #6 x 1/2 Inch Flat Head Screws, Six #6 x 5/8 Inch Flat Head Screws, Instructions |
| Material: | Steel |
| MPN (Part No.): | P1700/12-W |
| Projection (IN): | 3/8 Inch |
| Weight (LB): | 0.7 |
| Country of Origin: | China |
| Length (IN): | 12 Inch |
| MPN: | P1700/12-W |
| Pack: | Pair |
| Warranty: | Limited Lifetime |
| Width (IN): | 2-3/16 Inch |
