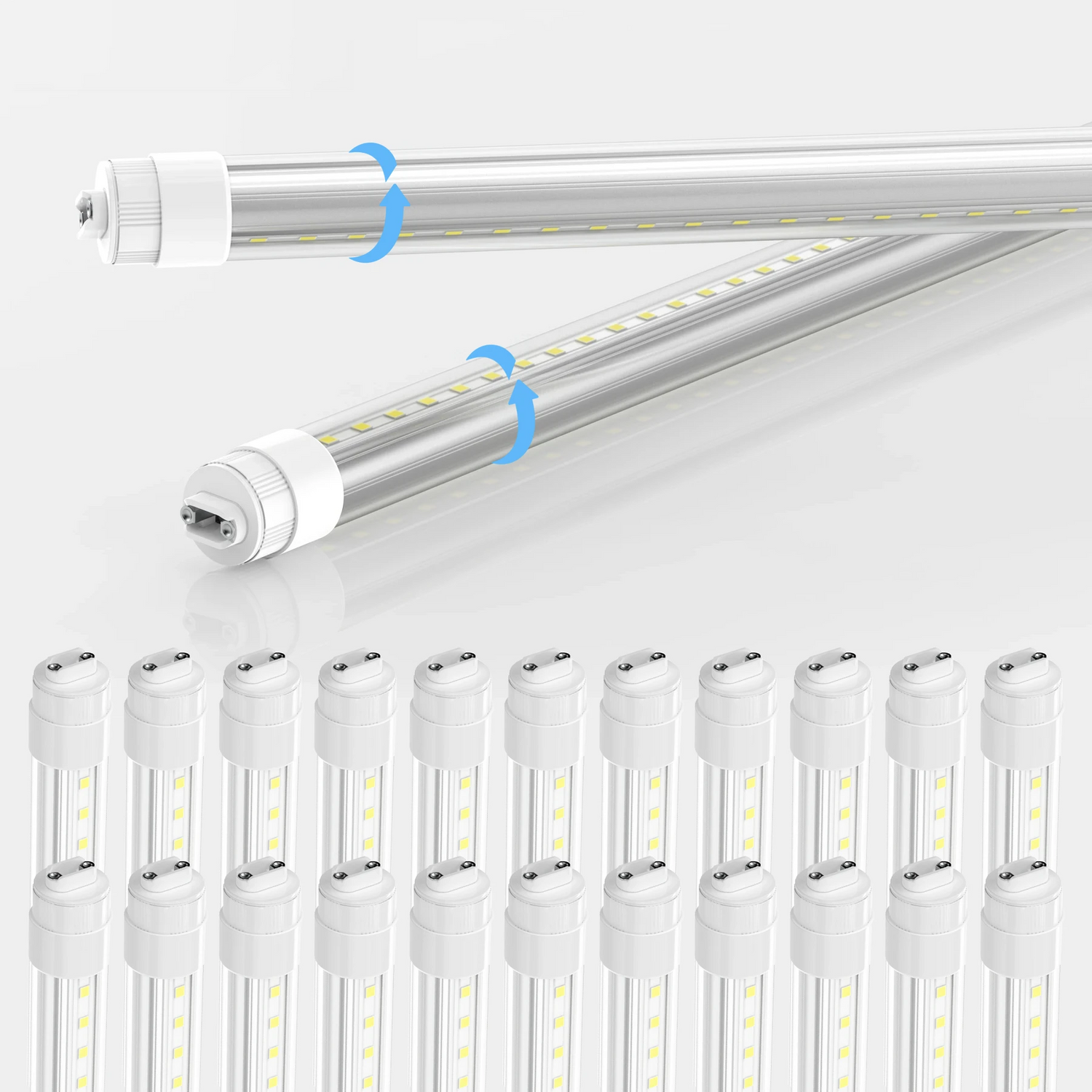

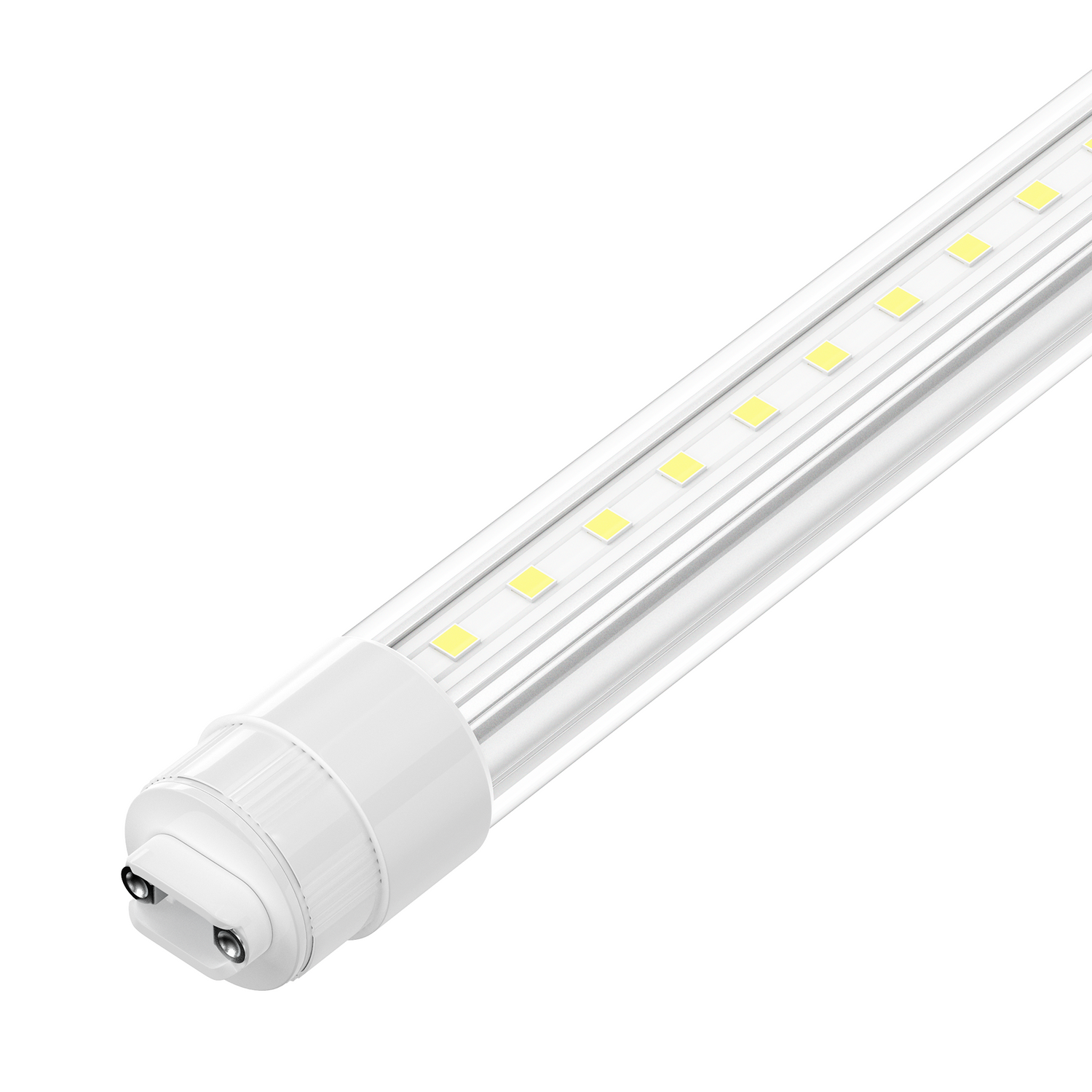

T8 LED Sign Tubes with R17 Base, Ballast-Bypass & Rotatable, Advertisement Lighting
-
Estimated Delivery:May 03 - May 07,the delivery time for cabinets may vary.
-
Free Shipping on select orders & Returns on all orders.
360 Degree Beam Spread - T8 R17 Base LED Sign Tubes - 6500K Crystal White Clear Cover - Double Sided Lights

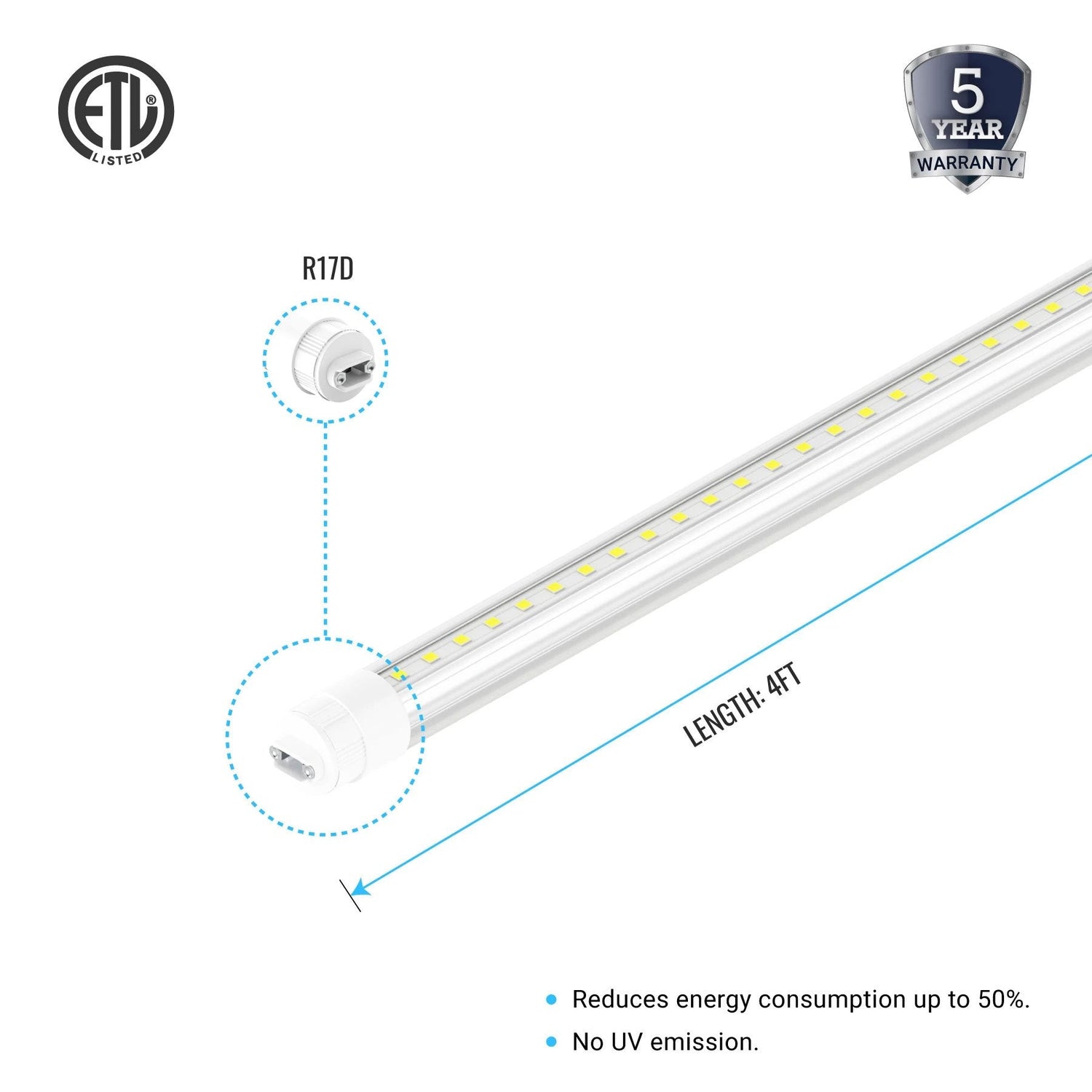

Select double-sided LED Sign Tubes according to the requirement of your space as it is available in different sizes and wattages, i.e., 2ft of 18W, 3ft of 20W, 4ft of 28W, 5ft of 36W, 6ft of 40W, 7ft of 48W, 8ft of 50W, 9ft of 55W and 10ft of 56W with R17D base style. It delivers an output ranging from 2340 lumen to 7280 lumens with a color temperature of 6500K.Â
These LED Sign tubes work without Ballast. The LED Sign Tubes of LEDMyplace are ideal for replacing Non-LED retrofit fixtures like the conventional T12 or T8 fluorescent lamps for sign applications. Each individual LED chip in the sign tube is covered with optical lenses that eliminate hot spots and ensure smooth light distribution throughout the outdoor sign fixture. The beam angle of these tubes is 360 degrees and operates on an input voltage of AC100-277V. Double-ended LED tubes are rotatable with a clear transparent cover that brings about 75% of energy savings.
The long-lasting tubes have a 3-4 times longer lifespan than the fluorescent tube that lasts for around 50,000 hours. These LED tubes' internal heat-sink comprises aluminum and PC for excellent thermal management and hence easy to control and maintain. Each of the tube light fixtures is environmentally friendly and meets safety and industry standards as each product is ETL Certified. The IP68 rating of these tube light fixtures makes them suitable for both dry and damp locations. On each purchase, you will get five years of manufacturer's warranty.
Features T8 LED Sign Tubes - R17 Base, Double-Sided Lights

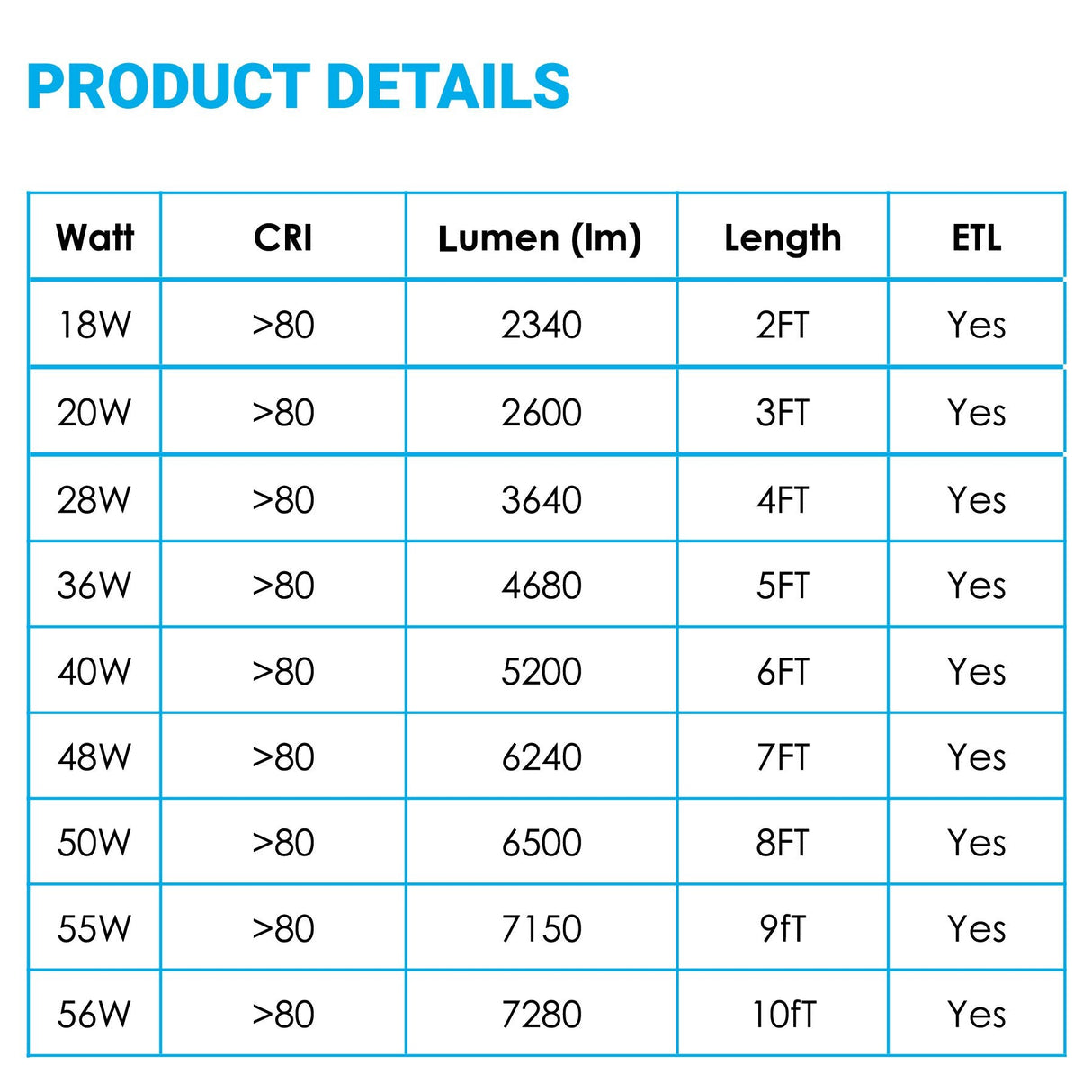

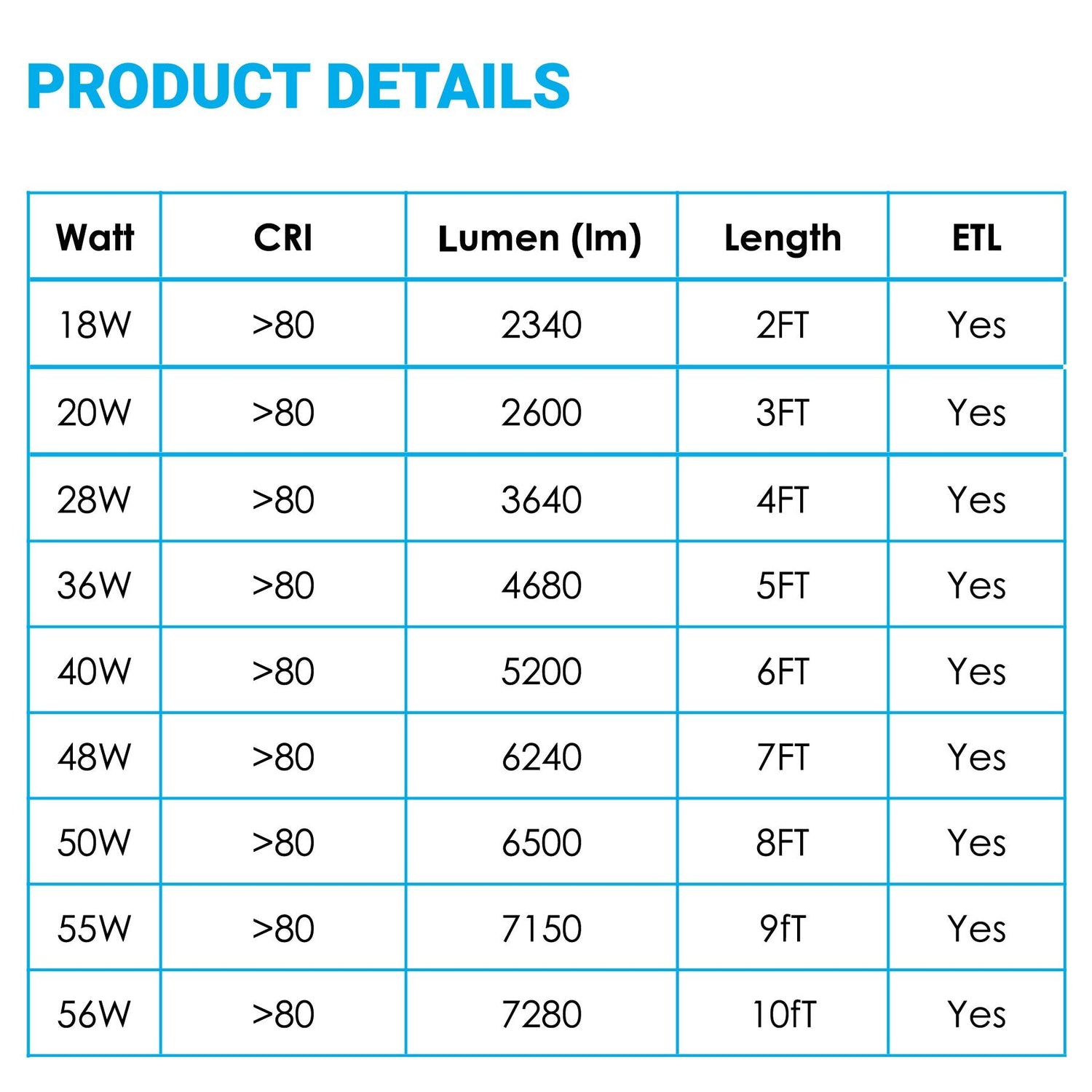

- Available Wattage : (2Ft-18W/ 3Ft- 20W/ 4Ft- 28W/ 5Ft- 36W/ 6Ft- 40W/ 7Ft- 48W/ 8Ft- 50W/ 9Ft- 55W/ 10FT- 56W)
- Available Lumens :(2Ft=2340lm/3Ft=2600lm/4Ft=3640lm/5Ft=4680lm/6Ft=5200lm/7Ft=6240lm/8Ft= 6500lm/ 9Ft=7150lm/10Ft=7280 Lumens)
- Color Temperature: 6500K
- Beam Angle: 360 Degree
- Wattage Equivalent: 18W = 63W/ 20W = 70W/ 28W =98W/ 36W =126W/ 40W =140W/ 48W =168W/ 50W= 175W/ 55W =192W/ 56W =196 Watts)
- Lifespan:Â 50,000 hours

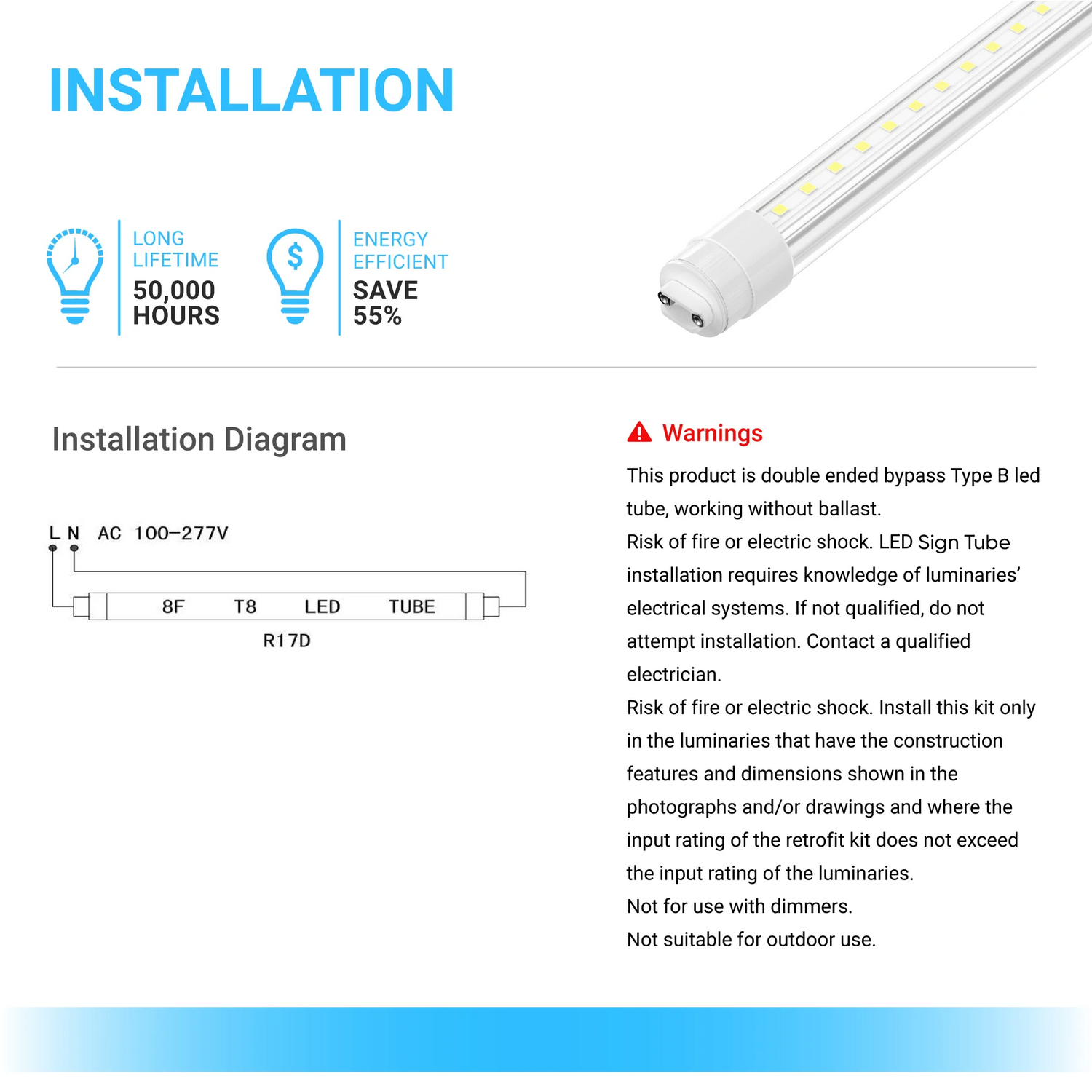

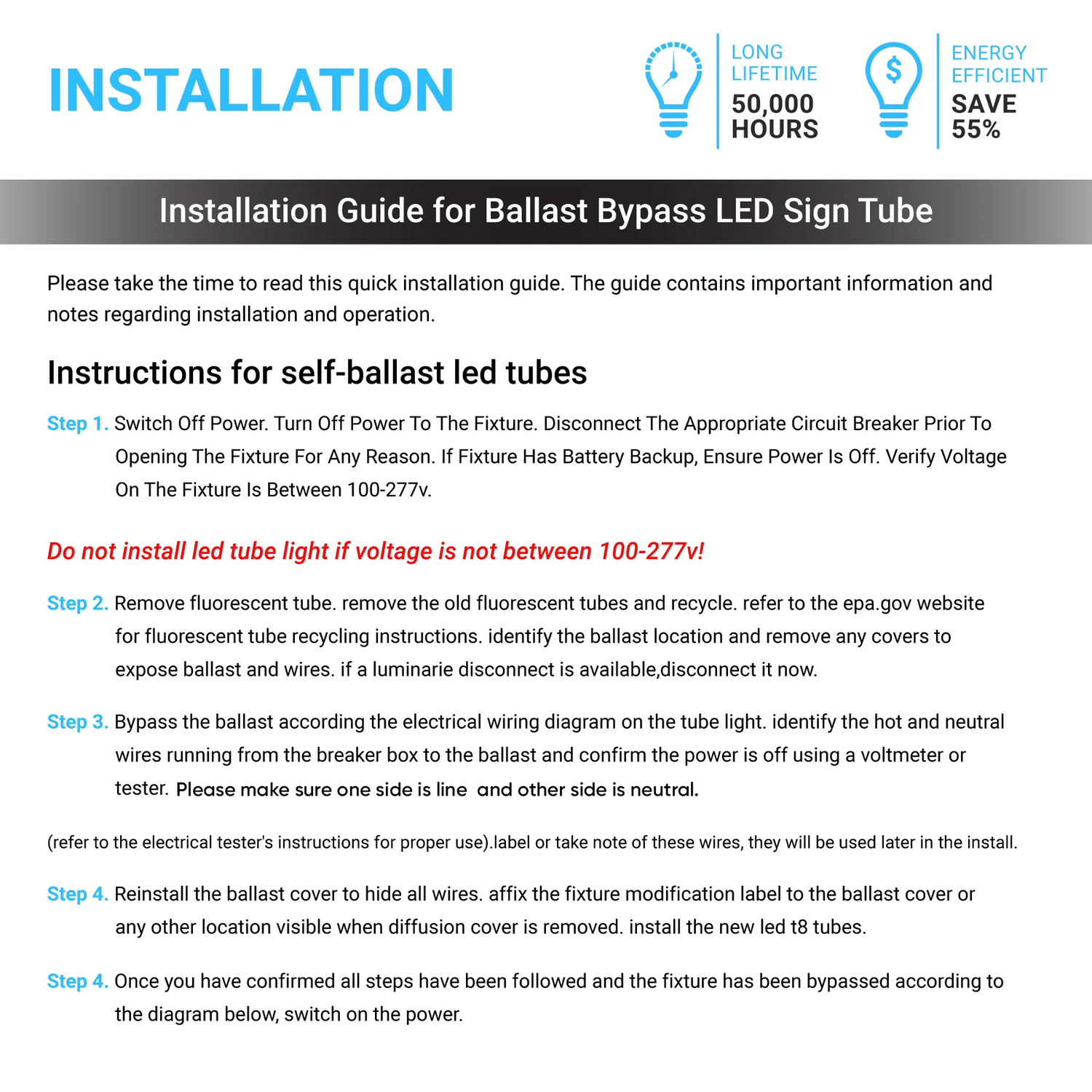

- Ballast Bypass: [Works without a ballast]
- Voltage:Â AC100-277V
- ETL, CEÂ &Â RoHSÂ approved
- 5 years of Manufacturer's Warranty
Flicker-Free:
LED Sign Tubes provide flicker-free illumination till the end of their lifespan. With instant functionality, these lights lose very little energy during start-up ensuring durability.
IP68 Rated:
These LED Sign Tubes come with an IP68 rating ensuring protection against dust and water ingress. These tubes are safe to use for indoor and outdoor lighting in residential and commercial infrastructures.
Voltage Input:
These LED Sign Tubes are designed to function and withstand an input voltage of 100V-277V. A waterproof transformer can be used to use these LED Sign Tubes with some other voltage range.
Low-Cost Maintenance:
These LED Sign Tubes require low or no maintenance. With a ballast the cost of replacing the ballast is eliminated at the beginning, making these tubes extremely low maintenance and practical for the rest of their lifetime.
CRI>80:
With a Color Rendering Index(CRI) > 80, these LED Sign Tubes render the natural or real color of objects to an accuracy of 80% compared to the ideal source i.e. Sun(CRI=100).

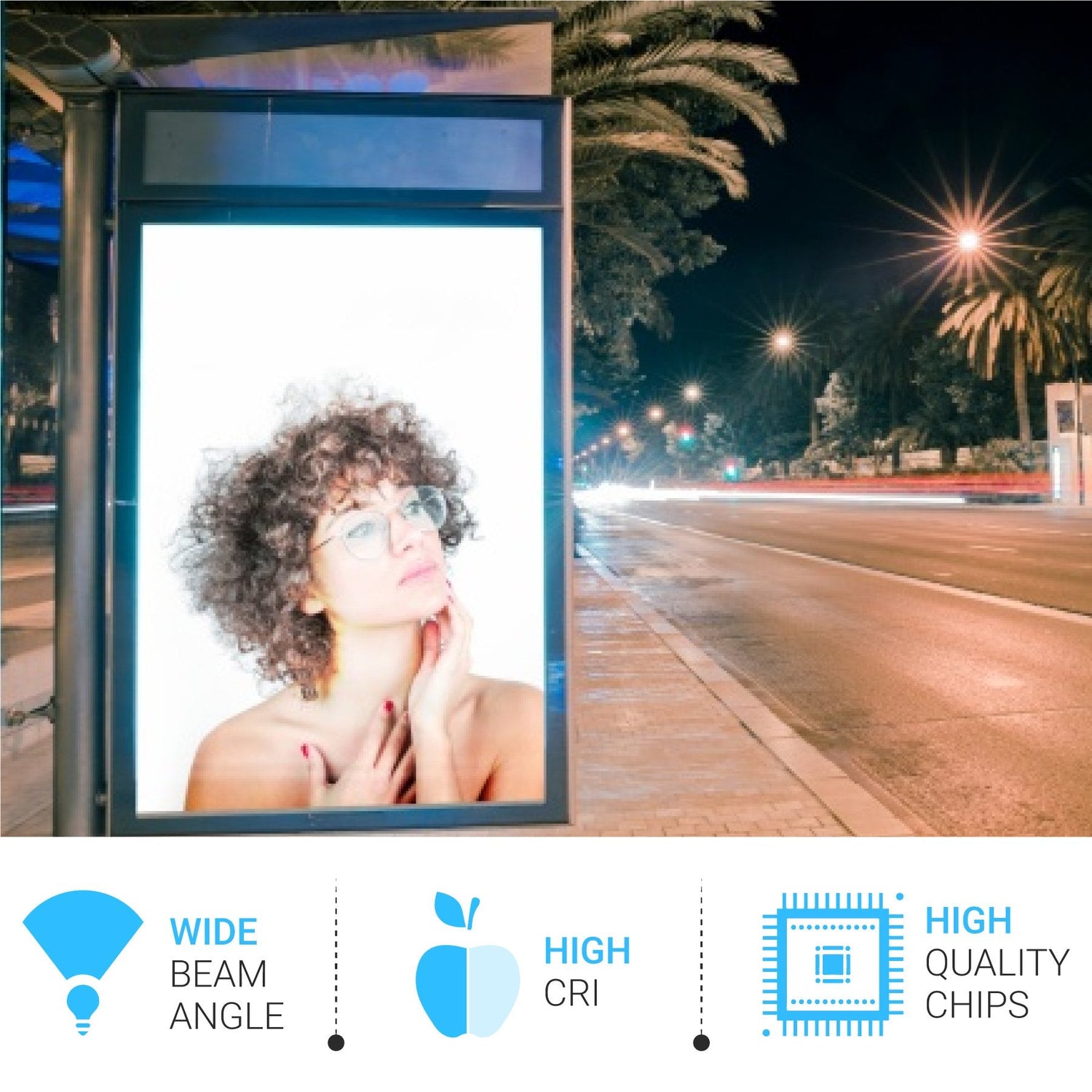

Wide Beam Angle:

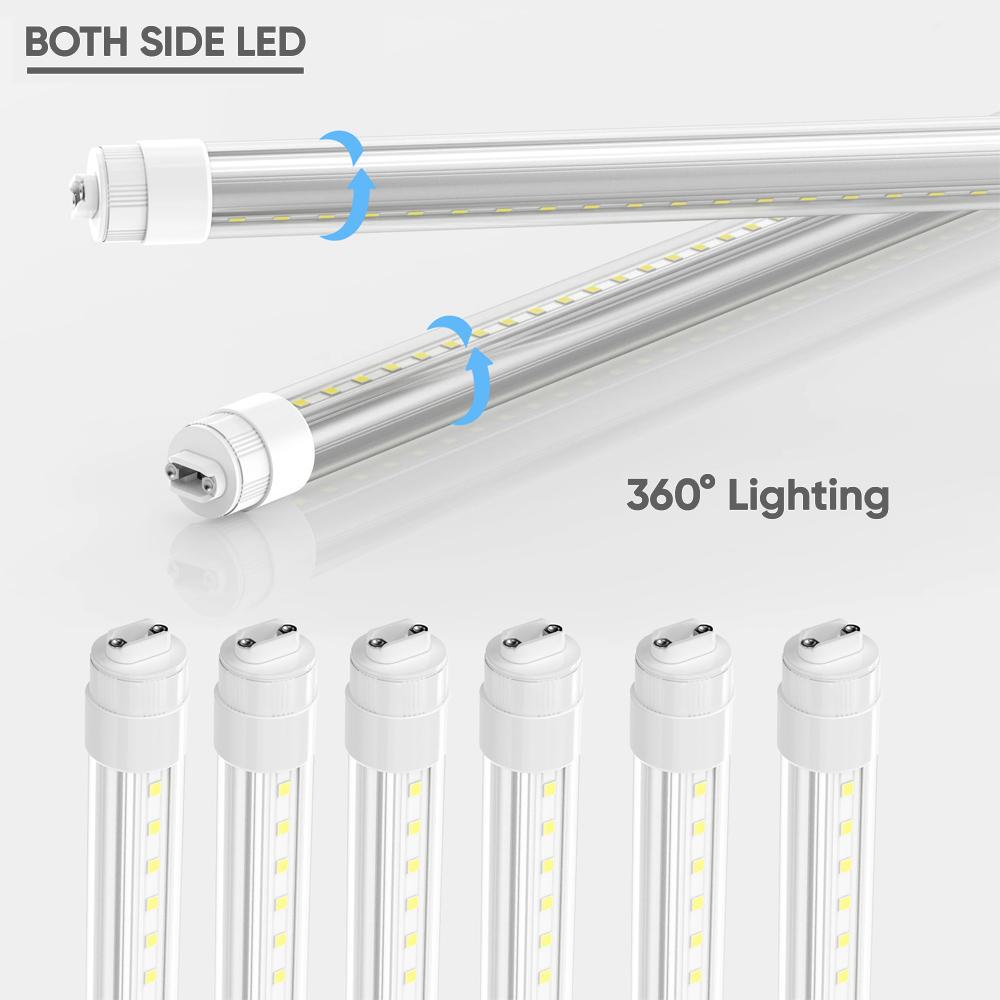

These lights are designed to give a viewing angle of 360 degrees giving illumination in all directions.
Energy Saving:
LED Light Fixtures can save you up to 75% on utility bills compared to HID's. LED light fixture provides you with a brilliant combo of high lumens and low-energy consumption making them a great investment for your property.
Aluminum Heat Sink:
With an aluminum heat sink, these lights are built to resist heat while producing optimal lighting. Aluminum being a conductor, can easily and effectively dissipate heat in comparison to other materials.
Green, Eco-Friendly & Mercury-Free:
Environmental safety came to light as a vague trend that now has become a necessity. Good thing all lights and luminaries available at LEDMyPlace comply with environmental safety and can be categorized as Green Lights. These lights are completely hazard-proof and safe to use with no toxic chemicals like mercury and lead.
5-Year Hassle-free Warranty & 30-Day Return Policy:
All our products come with a 5-year manufacturer warranty that gives you peace of mind because in case of any operational failure - we have your back. You also get a 30-day return policy on purchases so if you don't like the product you can just return the product within the first 30 days of purchase. For any of the above problems, all you have to do is get connected with one of our Customer Care Executives and we will take care of all the rest.
Product Specifications
| Beam Angle: | 360 Degree Degree |
| Color Rendering Index(CRI): | CRI >80 CRI |
| Housing: | Aluminum + Plastic |
| MPN (Part No.): | SN001 |
| Voltage: | AC100 -277 Volt |
| Certifications: | ETL, RoHS Listed |
| Color Temperature (Kelvin): | 6500 Kelvin |
| IP Rating: | IP68 Rated |
| Operating Temperature: | -68 Degree F To +122 Degree F |
| Warranty: | 5 Years |
