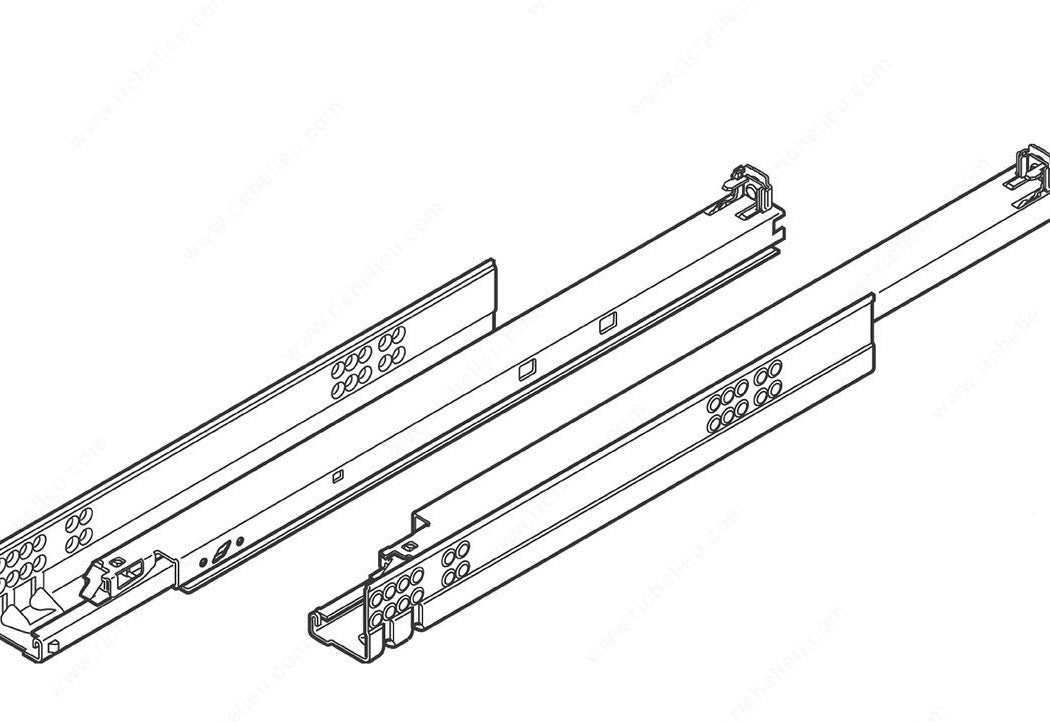

TANDEM plus 563H Full Extension Concealed Undermount Slide for Wood Drawer - WEBKIT1011513
Regular price
$47.50
Unit price
/
Unavailable
Shipping calculated at checkout.
TANDEM plus 563H Full Extension Concealed Undermount Slide for Wood Drawer - WEBKIT1011513 is backordered and will ship as soon as it is back in stock.
TANDEM plus 563H Full Extension Concealed Undermount Slide for Wood...
Regular price
$47.50
Unit price
/
Unavailable
Sold In Pairs
Max. drawer thickness 5/8"
-
Side-to-side, 1.5 mm (front and rear)
- Height, 3 mm
- Tilt, 5 mm
- Depth, with optional locking device, 3/32 in (2.5 mm)
- Depth, with elongated holes, plus or minus 11/16 in (4.5 mm)
ADVANTAGES AND BENEFITS
- Integrated BLUMOTION soft-close.
- Wide range of drawer lengths from 9" to 30", in 3" increments.
- Bottom mount holes for mounting to a fixed shelf or a flush bottom cabinet.
- Available for standard and heavy-duty applications.
- Excellent stability and less sag even when drawer is fully loaded.
- Bearing block for consistent reveal even in fully loaded drawer.
- Rear notch increases to 35 mm to accomodate new side-to-side adjustment.
- Same drawer box construction as the curent TANDEM runners.
- Same drilling pattern as current 562/568 TANDEM plus BLUMOTION concealed runners.
- Wide range of drawer lengths from 9" to 30", in 3" increments.
- Bottom mount holes for mounting to a fixed shelf or a flush bottom cabinet.
- Available for standard and heavy-duty applications.
- Excellent stability and less sag even when drawer is fully loaded.
- Bearing block for consistent reveal even in fully loaded drawer.
- Rear notch increases to 35 mm to accomodate new side-to-side adjustment.
- Same drawer box construction as the curent TANDEM runners.
- Same drilling pattern as current 562/568 TANDEM plus BLUMOTION concealed runners.
